503 DPL410 877.963.4966 • www.dixonvalve.com
V
Dual Y Valves
Bronze Ball Valves with NPT Tap for Drain
female NPT x female NPT
Size Port
Type
Bronze
Part # Price/E
1/4"
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
full
full
full
full
full
full
full
full
BBV25FP
BBV38FP
BBV50FP
BBV75FP
BBV100FP
BBV125FP
BBV150FP
BBV200FP
$26.00
26.00
26.00
42.20
53.40
124.50
165.10
284.50

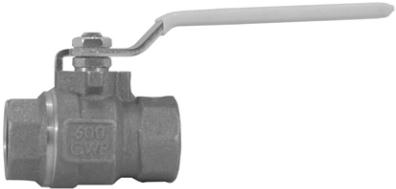

• machined solid chrome-plated ball
• multi-fill PTFE seats and seals
• adjustable packing
• blow-out proof stem design
• bronze castings
• vacuum service to 29 inches Hg
• rated to 600 PSI WOG; 150 PSI saturated steam
female NPT x female NPT
Size Port
Type
Bronze
Part # Price/E
1/4"
3/8"
1/2"
3/4"
1"
full
full
full
full
full
BBV25VT
BBV38VT
BBV50VT
BBV75VT
BBV100VT
$42.25
42.25
42.25
85.25
119.50

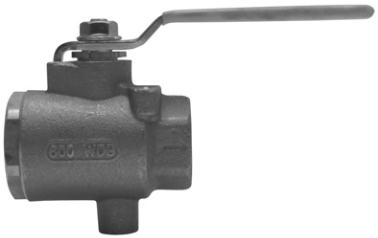

• recommended for water and air service
• rated to 125 PSI WOG
• bronze ball valves vent downstream air in accordance with
OSHA regulations for pneumatic systems.
• chromium plated ball
• RTFE seats and stuffing box ring
• blow-out proof stem design
• adjustable packing gland
• auto-drain / auto-vent
• A ¼" NPT tapped port provides additional options such as
an air venting elbow or noise muffler.

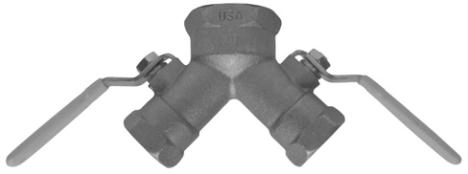

• dual action valve, ideal for compressor applications
• female NPT threads
• non-vented rated to 600 PSI WOG
• vented rated to 125 PSI CWP (Cold Working Pressure)
Female NPT
Inlet (1)
Female NPT
Outlet (2)
Brass
Part # Price/E
1"
1¼"
¾"
¾"
BBV100DW
BBV125DW
$118.50
118.50
Non-Vented
Female NPT
Inlet (1)
Female NPT
Outlet (2)
Brass
Part # Price/E
1"
1¼"
¾"
¾"
BBV100DWV
BBV125DWV
$118.50
118.50
Vented
