504 DPL410 877.963.4966 • www.dixonvalve.com
N
Valves
Carbon Steel Ball Valves
High Pressure Full-Bore Ball Valves
• blow out proof stem
• rugged construction
• Viton® shaft seals
• female thread
• recommended for use with fluids with widely varying
temperatures and/or thermal expansion rates
• rated to 600 PSIG; 250 PSI saturated steam
• vacuum service to 29 inches Hg

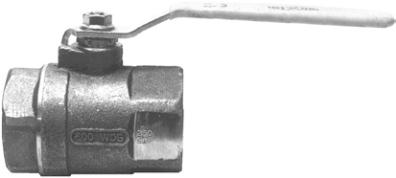

• threaded bronze valve
• 316 stainless steel ball and stem
• multi-fill RPTFE seats
• multi-fill stuffing box ring
• high temperature MTFE stem packing
• blow-out proof stem design
• adjustable packing gland
• maximum temperature rating 406°F
female NPT x female NPT
Size Port
Type
Bronze
Part # Price/E
½"
¾"
1"
2"
full
standard
standard
standard
BBV50ST
BBV75ST
BBV100ST
BBV200ST
$59.00
95.40
110.00
311.00

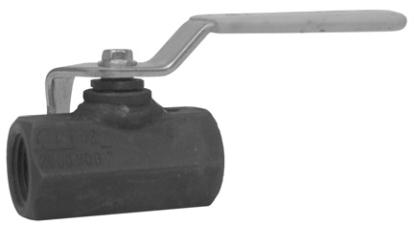

• for control of air, water, oil and gas in hose or pipe lines, for
other services, please contact the factory
• rated to 150 PSI saturated steam
• ¼" - 1" rated to 2000 PSI; 1¼" - 2" rated to 1500 PSI
• carbon steel body
• chromium plated ball
• RPTFE seats and seals
• blow-out proof stem
• adjustable packing gland
female NPT x female NPT
Size Port
Type
Carbon Steel
Part # Price/E
1/4"
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
full
full
standard
standard
standard
standard
standard
standard
IBV25
IBV38
IBV50
IBV75
IBV100
IBV125
IBV150
IBV200
$51.95
51.95
51.95
59.90
80.05
122.10
169.10
219.60
female x female
Size PSI Carbon Steel PSI Stainless Steel
NPTF Part # Price/E SAE Part # Price/E NPTF Part # Price/E
1/4"
3/8"
1/2"
3/4"
1"
1¼"
1½"
2"
7350
7350
7350
5880
5145
5880
5880
5880
HPBV25
HPBV38
HPBV12
HPBV34
HPBV10
HPBV125
HPBV150
HPBV200
$63.90
67.80
73.70
145.05
173.10
452.90
548.90
831.00
HPBV25SAE
HPBV38SAE
HPBV12SAE
HPBV34SAE
HPBV10SAE
HPBV125SAE
HPBV150SAE
HPBV200SAE
$71.65
80.70
87.10
162.20
190.00
490.20
583.00
870.00
7250
7250
7250
5800
5075
---
---
---
HPBV25SS
HPBV38SS
HPBV12SS
HPBV34SS
HPBV10SS
---
---
---
$427.50
497.50
595.00
950.00
1050.00
---
---
---
