502
DPL410
877.963.4966 • www.dixonvalve.com
N
Valves
3-Way Diversion Ball Valves
female NPT x female NPT x female NPT
Size
Port
Type
Brass
Part #
Price/E
½"
¾"
1"
1¼"
1½"
2"
standard
standard
standard
standard
standard
standard
BBV50DTW
BBV75DTW
BBV100DTW
BBV125DTW
BBV150DTW
BBV200DTW
$111.40
123.50
188.50
276.25
420.00
686.00
T Flow Pattern
L Flow Pattern
Note: ¼ turn handle can be adjusted to any orientation.
Notches on the valve stem reflect the three openings on
the ball.

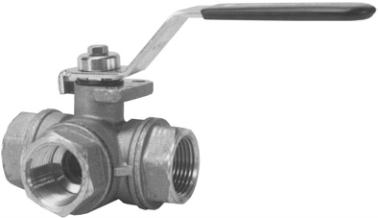

female NPT x female NPT x female NPT
Size
Port
Type
Brass
Part #
Price/E
½"
¾"
1"
full
standard
standard
BBV50TW
BBV75TW
BBV100TW
$54.75
76.00
100.00
•
can be used with gasoline
and diesel fuel
•
rated to
400 PSI
WOG
•
bronze body
•
blow-out proof stem
•
chromium-plated ball
•
RPTFE seats and stuffing
box ring
•
stainless steel handle and
nut with vinyl sleeve
•
adjustable packing gland

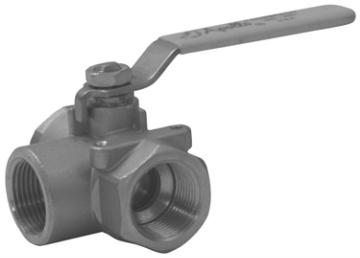

female NPT x female NPT x female NPT
Size
Port
Type
Stainless Steel
Part #
Price/E
½"
¾"
1"
full
standard
standard
SSBV50TW
SSBV75TW
SSBV100TW
$230.00
300.00
375.00
•
rated to
800 PSI
WOG
•
stainless steel body and
ball
•
blow-out proof stem
•
RPTFE seats and stuffing
box ring
•
stainless steel handle and
nut with vinyl sleeve
•
adjustable packing gland
•
meets NACE MR-01-75
•
rated to
400 PSI
WOG;
100 PSI
saturated steam
•
brass body
•
blow-out proof stem
•
chrome plated brass ball
•
PTFE seats, seals, and
thrust washer
•
adjustable stem packing
•
maximum temperature:
320°F
Lever Assembly
position 1 position 2
