501
DPL410
877.963.4966 • www.dixonvalve.com
V
female NPT x female NPT
Size
Port
Type
Brass
Part #
Price/E
1/4"
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
full
full
full
standard
standard
standard
standard
standard
BBV25LV
BBV38LV
BBV50LV
BBV75LV
BBV100LV
BBV125LV
BBV150LV
BBV200LV
$39.70
39.70
39.70
57.25
73.00
115.60
141.70
172.00
•
rated to
600 PSI
•
for air service only
•

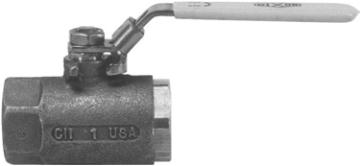

Lockable ball valves vent downstream air in accordance with
OSHA regulation 1910.147 for pneumatic systems.
•
brass valve
•
chromium plated ball
•
RTFE seats and stuffing box ring
•
blow-out proof stem design
•
adjustable packing gland

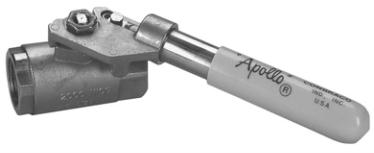

"Deadman" Spring Return Handle Ball Valves
•
rated to
600 PSI
WOG;
150 PSI
saturated steam
•
vacuum service to 29 inches Hg
•
stainless steel lever
•
chromium plated ball
•
RTFE seats and stuffing box ring
female NPT x female NPT
Size
Port
Type
Bronze
Part #
Price/E
½"
¾"
1"
1½"
2"
full
standard
standard
standard
standard
BBV50SR
BBV75SR
BBV100SR
BBV150SR
BBV200SR
$198.25
222.25
237.30
364.75
429.25
•
blow-out proof stem design
•
adjustable packing gland
•
spring return closes valve when not held open
•
operating torque approximately three times standard valve
torque
sliding lock
mechanism
female NPT x female NPT
Size
Port
Type
316 Stainless
Part #
Price/E
½"
¾"
1"
1¼"
1½"
2"
full
standard
standard
standard
standard
standard
SSBV50SR
SSBV75SR
SSBV100SR
SSBV125SR
SSBV150SR
SSBV200SR
$240.00
310.00
350.00
570.00
610.00
760.00
Bronze

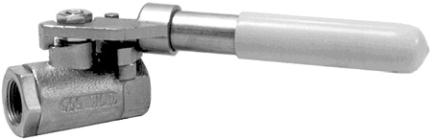

316 Stainless Steel
•
rated to
2000 PSI
WOG ½" to 1";
1500 PSI
WOG 1¼" to 2"
•
150 PSI
saturated steam, all sizes
•
vacuum service to 29 inches Hg, all sizes
•
PTFE seals
•
blow-out proof stem design
•
adjustable packing gland
•
spring return closes valve when not held open
•
operating torque approximately three times standard valve
torque
