114
DPL410
877.963.4966 • www.dixonvalve.com
E
Air
NPT
Sizes
Oil
Capacity
Max. Working Pressure at
ambient temperature (70°F)
Air Flow
at 70 PSI
Aluminum
Part #
Price/E
½"
¾"
¾"
1"
1.4 fluid ozs.
3.7 fluid ozs.
11.0 fluid ozs.
16.0 fluid ozs.
500 PSI
200 PSI
300 PSI
250 PSI
30 SCFM
70 SCFM
70 SCFM
100 SCFM
PL300
PL400
PL400L
PL500
$105.50
110.80
137.40
183.20
Description
Part #
Price/E Description
Part #
Price/E
(A) oil adjustment
valve assembly
(B) valve gasket
(C) fill plug
851661
452531
452525
$44.95
2.35
13.10
(D) fill plug O-ring
(E) sight disk
(F) sight disk seal
(G) sight disk lock nut
700013-214
452532
700013-016
452533
$1.50
2.45
1.65
6.75
Replacement Parts
A
B
C
D
G
E
F
In-Line Air Filters
Designed specifically for the protection of small air tools, such as impact wrenches, nut runners, grinders and screwdrivers.
The all-anodized, lightweight aluminum housing is compact and can be used directly before the air tool.
•
maximum operating pressure:
500 PSI
•
operating temperatures:
35°F
to
200°F
•
air flow is 140 SCFM
•
standard element is 40 micron, which ensures minimum
pressure drop
•
elements can be replaced quickly
Male
NPT
Overall
Length Diameter Weight
Lbs.
Aluminum
Part # Price/E
3/4"
3-13/16"
1-1/2"
.46
9076M
$65.00

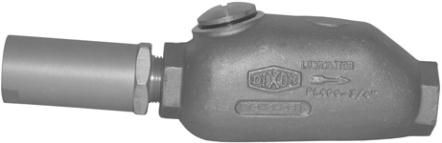

In-Line Lubricator with Filter
Combination unit consists of
9076M
particle filter with 40 micron sintered bronze element and
PL400
(3.7 ounce) or
PL400L
(11.0 ounce) lubricator.
NPT
Sizes
Oil
Capacity
Max.Work. Press.
at ambient temp.
(70°F)
Aluminum
Part # Price/E
¾"
¾"
3.7 fluid ozs.
11.0 fluid ozs.
200 PSI
300 PSI
PL400WF
PL400LWF
$191.40
216.75
Designed to protect portable or stationary air tools by efficiently oiling the tool mechanisms. Each time an air tool is operated, a
fine mist of oil is injected into it along with the air from the compressor. Installation is recommended within 25 feet of the tool to
be lubricated. Refer to the arrow for proper air flow direction. Transparent sight disc allows visual inspection of oil level. Oil flow
regulated by screwdriver screw adjustment. Minimum flow rate is 30 SCFM.
Not recommended for constant flow applications. For reciprocating tools only.
Type of oil to use:
Use any petroleum-base, non-detergent light weight oil (SAE 10/150SSU) which will readily break up into a mist, i.e., Mobil DTE
light or comparable oil.
Do not use any synthetic oil or oils containing additives or solvents.
See page 131 for air tool lubricant.
In-Line Lubricator Base
• Base can be fitted to any existing PL lubricator, keeps
lubricator from flipping or rolling over, ensuring that it
provides continuous lubrication to the downstream air tool.
Description
Aluminum
Part # Price/E
leveling base for PL300
leveling base for PL400
leveling base for PL500
LB300
LB400
LB500
$15.00
15.75
16.00
