Hose End
Tool End Hose End
Hose End
WSR1E
WSR1E with stainless steel marine eye
WB1C

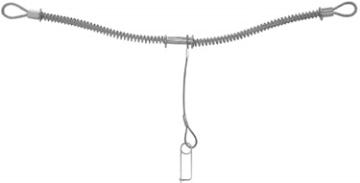

WB1 with safety clip and lanyard
When hose, couplings or clamps fail, or there is an accidental separation of the assembly, King safety cables minimize damage
to equipment and injuries to operators. King safety cable reaches across the hose fittings to provide standby safety for hose.
Spring-loaded loops in the cable ends open easily to pass over the couplings for a firm grip on the hose. Thoroughly tested with
years of service. A positive safeguard for air hose connections - helps you meet today's safety standards.
King safety cable
must be installed in the extended position (no slack).
Features:
•
hose-to-hose or hose-to-rigid outlet
•
King cable is the low cost answer to eliminate injuries
caused by broken air hose connections
•
highly resistant to rust and corrosion
•
no tools needed - easy to install and remove
•
max. working pressure:
200 PSI
Note: Cables are shipped with safety restraint labels attached. Labels are not pictured.
King Safety Cable Options
Cable Part #
Description
Max. Working
Pressure PSI Price/E
1/8"
1/8"
1/8"
1/4"
WSR1C
WB1C
WSR1E
WA2B
WSR1 with safety clip and lanyard used to lock Air King couplings
WB1 with safety clip and lanyard used to lock Air King couplings
WSR1 with stainless steel safety marine eye used to connect safety cable to a bolt on tool
WA2 with bronze/copper ferrule for special environmental conditions
200
200
200
200
$31.75
31.20
52.70
59.50
Spring Guard
Guard
ID
Hose OD
Wire
Gauge
Over All
Length
Tang
Length
Approx.
# of Coils
Galvanized Steel
From
To
Part #
Price/E
¾"
1"
1¼"
1½"
1¾"
2"
2½"
3"
7/8"
15/16"
1-1/4"
1-1/2"
1-3/4"
2"
2-1/2"
3"
15/16"
1-1/4"
1-1/2"
1-3/4"
2"
2-1/2"
3"
3-1/4"
0.175
0.175
0.175
0.175
0.175
0.280
0.280
0.280
12"
12"
14"
14"
16"
16"
18"
18"
1"
1"
2"
2"
2"
2"
2"
2"
33
33
39
39
44
44
50
50
SEGC1-0.75-12
SEGC1-1.00-12
SEGC1-1.25-14
SEGC1-1.50-14
SEGC1-1.75-16
SEGC1-2.00-16
SEGC1-2.50-18
SEGC1-3.00-18
$9.00
10.00
12.00
14.00
16.00
20.00
25.00
30.00
Protects hose against the effects of flexing at its most vulnerable point - immediately behind the coupling. End 'tang' allows end
guard to be secured under a clamp or ferrule. Made of half-round galvanized steel wire to fit hose OD's from 7/8" to 3-1/4".
See page 5 for OSHA regulations.
Style W, for hose-to-hose service
Hose ID Cable Length Max. Work.
Press. PSI
Steel
Stainless Steel
Part # Price/E Part # Price/E
½" - 1¼"
½" - 2"
1½" - 3"
4"
1/8"
3/16"
1/4"
3/8"
20¼"
28"
38¼"
44"
200
200
200
200
WB1
WB3
WA2
WA4
$18.25
27.05
29.70
63.80
WB1SS
---
WA2SS
---
$50.50
---
106.00
---
Style WSR, for hose-to-tool service
Hose ID Cable Length Max. Work.
Press. PSI
Steel
Stainless Steel
Part # Price/E Part # Price/E
½" - 1¼"
½" - 2"
1½" - 3"
4"
1/8"
3/16"
1/4"
3/8"
20¼"
28"
38"
44"
200
200
200
200
WSR1
WSR3
WSR2
WSR4
$18.25
26.20
28.80
63.75
WSR1SS
---
WSR2SS
---
$47.75
---
100.75
---
correct installation
incorrect installation
