113
DPL410
877.963.4966 • www.dixonvalve.com
A
•
Dual Lock couplings with ferrules are rated to
300 PSI
working pressure at ambient temperature (70°F).
•
trivalent chrome plated coupling with plated steel ferrule
•
also available in brass and stainless steel
•
for crimp recommendations see page 634
Body
Size
Hose
ID
Hose OD
Part #
Price/E
From:
To:
1/2"
1/2"
1/2"
3/4"
54/64"
1-10/64"
1-2/64"
1-22/64"
PHL8WF
PHL12WF
$40.80
42.65
Body
Size
Hose ID
Size
Part #
Price/E Opt
Qty
Hose End Barb with Knurled Flanged Sleeve
1/2"
1/2"
1/2"
3/8"
1/2"
3/4"
PHL6FS
PHL8FS
PHL12FS
$36.86
36.86
38.73
25
25
25
Dual Lock Quick-Acting Couplings with Knurled Flanged Sleeve
•
large, raised collar sleeve permits easier handling when wearing gloves
•
trivalent chrome plated
Body
Size
NPT Thread
Size
Part #
Price/E Opt
Qty
Male Pipe Thread with Knurled Flanged Sleeve
1/2"
1/2"
1/2"
3/8"
1/2"
3/4"
PML6FS
PML8FS
PML12FS
$35.07
34.90
34.90
25
25
25
Body
Size
NPT Thread
Size
Part #
Price/E Opt
Qty
Female Pipe Thread with Knurled Flanged Sleeve
1/2"
1/2"
1/2"
3/4"
PFL8FS
PFL12FS
$39.43
39.43
25
25

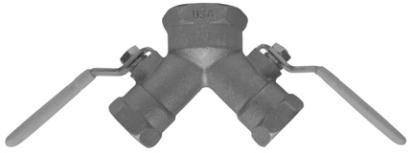

Dual Y Valves
•
dual action valve, ideal for compressor applications
•
female NPT threads
•
non-vented rated to
600 PSI
WOG
•
vented rated to
125 PSI
CWP (Cold Working Pressure)
Female NPT
Inlet (1)
Female NPT
Outlet (2)
Brass
Part #
Price/E
1"
1¼"
¾"
¾"
BBV100DW
BBV125DW
$118.50
118.50
Non-Vented
Female NPT
Inlet (1)
Female NPT
Outlet (2)
Brass
Part #
Price/E
1"
1¼"
¾"
¾"
BBV100DWV
BBV125DWV
$118.50
118.50
Vented
Female NPT
Inlet (1)
Male NPT
Outlet (2)
Iron
Part #
Price/E
1"
¾"
Y10075
$58.00
•
converts a single supply source to a dual outlet
Compressor Y
