BANJO FITTINGS
Copyright © 2002-2007
18
BrakeQuip
A = Asian EU = European US = United States UNI = Universal V = Various
HFB68
3/8"
1/2"
22.4mm 7°
110mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Left
HFB69
3/8"
1/2"
22.4mm 7°
110mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Right
HFB74
10mm 11mm 28.6mm 107°
145mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Left
HFB76
3/8"
1/2"
19.7mm 90°
143mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB77
3/8"
1/2"
19.7mm 90°
143mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB78
7/16"
11mm 22.2mm 90°
133mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Left
Right
Left
HFB79
7/16"
11mm 22.2mm 90°
133mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Right
HFB42
10mm 12mm 19.6mm 60°
130mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB43
10mm 12mm 19.6mm 60°
130mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Left
Right
HFB94
7/16"
11.6mm
20mm 90°
110mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Right
HFB82
3/8"
1/2"
26mm 50°
147mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Right
HFB83
3/8"
1/2"
26mm 50°
147mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Left
HFB86
10mm 11.2mm 28.6mm 70°
175mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
HFB87
10mm 11.2mm 28.6mm 70°
175mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Left
Right
HFB52
10mm 11mm 28.6mm 107°
145mm US
HOLE
THICK WIDTH ANGLE OAL
FITS
Right

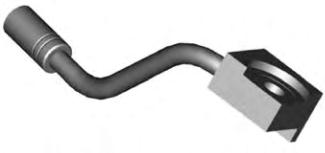

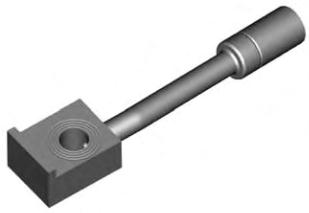

TUBE STYLE - LEFT/RIGHT
