BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109
29
Food

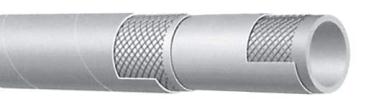

T455LL - 150 PSI Food Discharge Hose
APPLICATION
Discharge of liquid, fatty and oily foods and alcoholic beverages.
Hose may be sterilized with 30 PSI steam at 266°F for 30
minutes maximum – open end only.
Not recommended for dry abrasive materials.
COVER
White NBR/PVC blend — abrasion, ozone and oil resistant.
REINFORCEMENT
High tensile textile cords.
TUBE
White NBR. Meets FDA and 3A requirements.
TEMPERATURE RANGE
-22°F (-30°C) to 176°F (+80°C).
STANDARD LENGTH
100 feet
BRANDING
ALFAGOMMA – ITALY T455 10 BAR (150 PSI) – GENERAL
PURPOSE FOOD TRANSFER (in black letters)
COUPLING SUGGESTIONS
Quick-Acting couplings attached with bands.
H
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
T455LL150
1 1/2
38
1.89
48
58
150
T455LL200
2
51
2.48
63
93
150
T455LL300
3
76
3.46
88
136
150
Nominal Specifcations
SERIES NO.
NOMINAL ID
NOMINAL OD
APPROX. WT.
MAX. REC.
(in.)
(mm)
(in.)
(mm)
lbs./100 ft.
WP (PSI)
H
CONSULT FOOD HOSE GUIDE FOR MATERIAL COMPATIBILITY ON PAGE 31
