BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109
43
Petroleum
APPLICATION
For suction and discharge applications in truck and tank car
transfer of gasoline, oil and Biofuels - up to E98 and B100* with
up to 60% aromatic content at ambient temperature.
COVER
Black specially-blended neoprene - added resistance against
abrasion, ozone and hydrocarbons.
REINFORCEMENT
High tensile textile cords and steel helix wires.
TUBE
Black conductive synthetic rubber.
TEMPERATURE RANGE
-22°F (-30°C) to 176°F (+80°C)
STANDARD LENGTH
100 feet: 3/4" through 4"
WORKING PRESSURE
Constant Pressure 150 PSI
BRANDING
ALFAGOMMA – ITALY T629 – 10 BAR (150 PSI)
BIOFUEL
W
(in green letters)
*Applies to Biodiesels which meet the ASTM D6751 criteria
H
T629 is not recommended for use on a reel.
T629AA075
3/4
19
1.14
29
41
3
T629AA100
1
25
1.38
35
51
4
T629AA125
1 1/4
32
1.65
42
60
5
T629AA150
1 1/2
38
1.89
48
70
6
T629AA200
2
51
2.40
61
91
8
T629AA250
2 1/2
63
2.95
75
142
10
T629AA300
3
76
3.46
88
169
12
T629AA400
4
102
4.57
116
234
16
SERIES NO.
NOMINAL ID
NOMINAL OD
APPROX.WT.
MIN. BEND
(in.)
(mm)
(in.)
(mm)
lbs./100 ft.
RADIUS (in.)

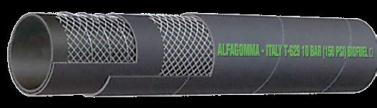

T629AA - 150 PSI Black Biofuel Petroleum
Suction Hose
TM
Nominal Specifcations
COUPLING SUGGESTIONS
Quick-Acting or combination nipples attached with bands.
H
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
