FOOD

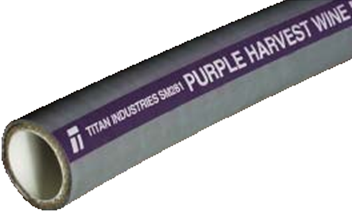

SM281 PURPLE HARVEST CRUSH RESISTANT WINE DISCHARGE HOSE
WORKING
WEIGHT
I.D.
O.D.
REINFORCEMENT PRESSURE PSI
LB/FT
New
1
1
/
2
”
3
/
16
” plies 250 1.05
2” 2
23
/
32
” plies 250 1.38
2
1
/
2
”
7
/
32
” plies 225 1.71
3” 3
3
/
4
” plies 225 2.01
4” 4
3
/
4
” plies 200 2.64
DESCRIPTION: Crush and kink resistant
wine discharge
hose. Lightweight, easier handling and a tighter bend radius
due to a monofilament helix. Manufactured on stainless steel
mandrels for an ultra-smooth bacteria free tube that will not impart
taste or odor. Meets FDA , USDA, PMO and 3-A requirements.
TUBE: Extruded
white Chlorobutyl
(Microbes resistant).
REINFORCEMENT:
Multiple plies of polyester yarn with
monofilament helix.
SM281
COVER:
Specially compounded gray EPDM.
CRUSH RESISTANT
TEMPERATURE:
-40° to +225° F.
RESISTANT TO MICROBES AND BACTERIA

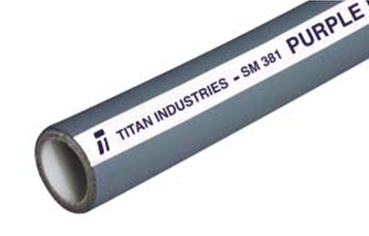

SM381 PURPLE HARVEST II CRUSH RESISTANT WINE SUCTION HOSE
WORKING
WEIGHT
VACUUM
I.D.
O.D.
BEND RADIUS
PRESSURE PSI LB/FT
RATING
New
1
1
/
2
”
1
/
4
” ” 250 1.16 Full
2” 2
25
/
32
” ” 250 1.53 Full
2
1
/
2
”
9
/
32
” 13” 250 1.94 Full
3” 3
25
/
32
” 21” 250 2.28 Full
4” 4
25
/
32
” 40” 200 3.03 15”
DESCRIPTION: Crush and kink resistant
wine suction hose.
Designed for the suction and discharge of wine, beer,
potable water and other non-oily food transfer applications.
Lightweight, easier handling and a tighter bend radius due to
a monofilament helix. Manufactured on stainless steel mandrels
for an ultra-smooth bacteria free tube that will not impart taste or
odor. Meets FDA , USDA, PMO and 3-A requirements.
TUBE: Extruded
white Chlorobutyl
(Microbes resistant).
REINFORCEMENT:
Multiple plies of polyester yarn with
monofilament helix.
COVER:
Specially compounded gray EPDM.
TEMPERATURE:
-40° to +225° F.
SM381
CRUSH RESISTANT
RESISTANT TO MICROBES AND BACTERIA

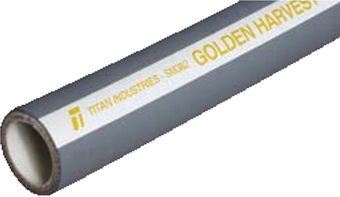

SM382 GOLDEN HARVEST CRUSH RESISTANT FOOD & BEVERAGE SUCTION HOSE
WORKING
WEIGHT
VACUUM
I.D.
O.D.
BEND RADIUS
PRESSURE PSI LB/FT
RATING
New
1
1
/
2
”
1
/
4
” ” 250 1.16 Full
2” 2
25
/
32
” ” 250 1.53 Full
2
1
/
2
”
9
/
32
” 13” 250 1.93 Full
3” 3
25
/
32
” 21” 250 2.27 Full
4” 4
25
/
32
” 40” 200 3.03 15”
DESCRIPTION:
Multi-purpose
crush and kink resistant
food hose suitable for milk, milk products, fruit juice, soft
drinks, pharmaceutical and other non-oily liquid food prod-
ucts. Lightweight, easier handling and a tighter bend radius
due to a monofilament helix. Manufactured on stainless steel
mandrels for an ultra-smooth bacteria free tube that will not
impart taste or odor. EPDM cover assures excellent abrasion
resistance and protection against ozone and mild chemicals.
Meets FDA , USDA, PMO and 3-A requirements.
TUBE: Extruded
white Chlorobutyl
(Microbes resistant).
REINFORCEMENT:
Multiple plies of polyester yarn with
monofilament helix.
COVER:
Specially compounded Gray EPDM.
TEMPERATURE:
-40° to +225° F.
SM382
CRUSH RESISTANT
RESISTANT TO MICROBES AND BACTERIA
