DOCK/O.S.&D.

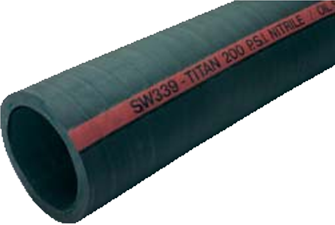

SW339 DOCK / O.S.& D. HOSE - 200 PSI
WORKING
WEIGHT
VACUUM
I.D.
O.D.
BEND RADIUS
PRESSURE PSI LB/FT
RATING
4” 5
3
/
16
” 16” 200 5.82 Full
6” 7
1
/
4
” 36” 200 9.43 Full
8” 9
1
/
4
” 48” 200 12.40 Full
DESCRIPTION:
Heavy duty, multi-purpose suction and dis-
charge hose. Designed specifically for transferring petroleum
products to and from tankers, barges and storage tanks.
Exclusive construction allows for excellent flexibility for han-
dling ease. Specially formulated tube is resistant up to 50%
aromatics. Rugged all weather cover is resistant to oil, cuts,
gouges, scuffs, and ozone attack. Available in smooth or corru-
gated construction with built-in or swaged ends. Meets all U.S.
Coast Guard requirements for Dock/O.S. & D. hose.
TUBE: Extruded
Nitrile.
REINFORCEMENT:
Multiple plies of polyester yarn with dual
wire helix.
COVER:
Oil resistant synthetic rubber.
TEMPERATURE:
-40° to +180° F.
SW339 - 200 PSI
NOTE: Please consult chemical recommendation
chart on pages 81-89 or contact Titan for further
information.

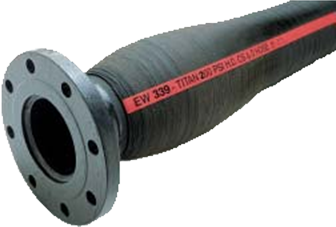

EW339 DOCK / O.S.&D. HOSE - 200 PSI
WORKING
WEIGHT
VACUUM
I.D.
O.D.
BEND RADIUS
PRESSURE PSI LB/FT
RATING
6” 7
1
/
8
” 36” 200 8.00 Full
8” 9
1
/
4
” 48” 200 13.30 Full
10” 11
15
/
32
” 60” 200 20.00 Full
12” 13
9
/
16
” 72” 200 27.00 Full
DESCRIPTION:
Heavy duty, suction and discharge hose
designed specifically for transferring petroleum products to and
from tankers, barges and storage tanks. Exclusive construction
allows for excellent flexibility and handling ease. Rugged all
weather cover is resistant to oil, cuts, gouges, scuffs, and
ozone attack. Available in smooth or corrugated construction
with built-in or swaged end styles. Meets all U.S. Coast Guard
requirements for Dock/O.S. & D. hose.
TUBE:
Nitrile.
REINFORCEMENT:
Multiple plies of polyester yarn with wire
helix.
COVER:
Oil resistant synthetic rubber.
TEMPERATURE:
-40° to +180° F.
EW339 - 200 PSI
NOTE: Please consult chemical recommendation
chart on pages 81-89 or contact Titan for further
information.
NOTE:
Use Part #EW338 for 150 PSI hose.
Use Part #EW355 for 250 PSI hose.
Use Part #EW356 for 300 PSI hose.
