PETROLEUM
SW303 TANK TRUCK HOSE
WORKING
WEIGHT
VACUUM
I.D.
O.D.
BEND RADIUS
PRESSURE PSI
LB/FT
RATING
SW303
1
1
/
4
”
11
/
16
” 4” 200 .51 Full
1
1
/
2
”2” ” 200 .64 Full
2” 2
1
/
2
” ” 200 .95 Full
2
1
/
2
”3” ” 150 1.32 Full
3” 3
1
/
2
” 12” 150 1.68 Full
4” 4
5
/
8
” 18” 150 2.63 Full
DESCRIPTION:
Premium grade petroleum suction and dis-
charge hose that is resistant up to 60% aromatics. Excellent tank
wagon hose where flexibility is a must. Lightweight design
allows for handling ease. Dual wire helix construction provides
full vacuum capabilities. Cover is oil, abrasion and ozone resist-
ant.
TUBE: Extruded
Nitrile.
REINFORCEMENT:
Multiple plies of polyester yarn with dual
helix wire.
COVER:
Specially compounded Nitrile.
TEMPERATURE:
-40° to +180° F.
SW309 PETROVAC HOSE
WORKING
WEIGHT
VACUUM
I.D.
O.D.
BEND RADIUS
PRESSURE PSI
LB/FT
RATING
SW309
1” 1
7
/
16
” ” 150 .44 Full
1
1
/
4
”
11
/
16
” ” 150 .52 Full
1
1
/
2
”2” ” 150 .65 Full
2” 2
1
/
2
” ” 150 1.01 Full
2
1
/
2
” ” 10” 150 1.28 Full
3” 3
1
/
2
” 12” 150 1.75 Full
4” 4
9
/
16
” 18” 150 2.51 Full
5” 5
3
/
4
” 25” 100 3.60 Full
6” 6
3
/
4
” 30” 100 4.81 Full
DESCRIPTION:
Lightweight, flexible hose used for trans-
ferring petroleum products. Dual wire helix construction
provides full vacuum capabilities and kink resistance.
Cover is ozone, abrasion and oil resistant.
TUBE: Extruded
specially compounded
Nitrile.
REINFORCEMENT:
Multiple plies of polyester yarn with dual
helix wire.
COVER:
Specially compounded Nitrile.
TEMPERATURE:
-40° to +180° F.

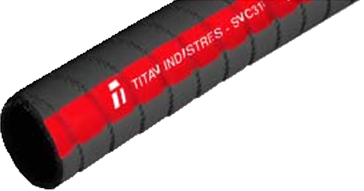

SWC316 PETROMAX CORRUGATED PETROLEUM HOSE
WORKING
WEIGHT
VACUUM
I.D.
O.D.
BEND RADIUS
PRESSURE PSI
LB/FT
RATING
New
1” 1
9
/
16
” ” 150 .61 Full
1
1
/
2
”
1
/
16
” ” 150 .85 Full
2” 2
9
/
16
” ” 150 1.18 Full
2
1
/
2
”
1
/
16
” ” 150 1.39 Full
3” 3
19
/
32
” ” 150 1.84 Full
4” 4
19
/
32
” 12” 150 2.60 Full
6” 6
3
/
4
” 18” 125 4.79 Full
DESCRIPTION: Super-flexible
petroleum suction and
discharge tank truck hose used for transferring petroleum
products. Deep corrugated design allows an extremely tight
bend radius without kinking or crushing. High grade
rugged cover is ozone, abrasion and oil resistant.
TUBE:
Extruded
Nitrile.
REINFORCEMENT:
Multiple plies of polyester yarn with dual
helix wire.
SWC316
COVER:
Specially compounded Nitrile.
TEMPERATURE:
-40° to +180° F.
SWC316R - RED COVER
