Page 20 - 866-711-4673 Goodyear Rubber Products

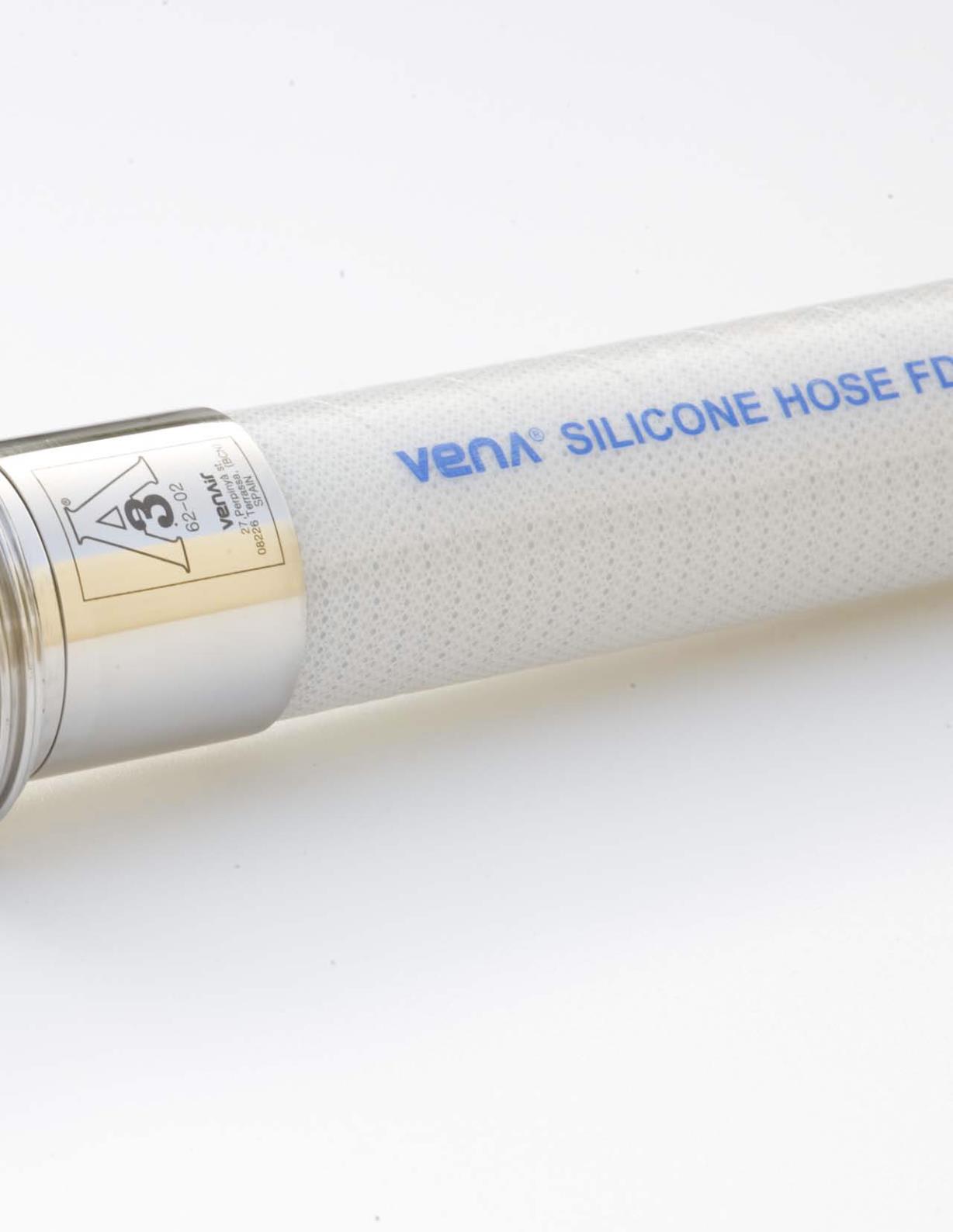

STAINLESS STEEL
FITTINGS 316L
Available in 316L stainless steel, with the exception of the nuts
and ferrules which are made of 304 stainless steel. Other fittings
can be assembled upon request (RJT, FIL, ISS, MACON, GAS
JIC, flanges). Clamps and auxiliary parts for welding can also be
manufactured.
DIN 11851
DN A B
(DIN 405) C
(mm) thread (mm)
10 10 28 x 1/8” 10
15 16 34 x 1/8” 15
20 20 44 x 1/6” 20
25 26 52 x 1/6” 25
32 32 58 x 1/6” 32
40 38 65 x 1/6” 38
50 50 78 x 1/6” 50
65 66 95 x 1/6” 63
80 81 110 x 1/4” 75
100 100 130 x 1/4” 102
125 125 160 x 1/4” 127
150 150 190 x 1/4” 152
TRI-CLAMP
a b c
(mm) (mm) (mm)
25 6,0 6
34 8,0 8
50 8,0 8
25 10,0 10
34 10,0 10
50 10,0 10
25 10,0 13
34 10,0 13
25 13,0 13
34 13,0 13
50 13,0 13
25 16,0 16
34 16,0 16
50 16,0 16
25 16,0 20
50 16,0 20
34 18,0 18
50 18,0 18
a b c
(mm) (mm) (mm)
34 20,0 20
50 20,0 20
50 22,5 18
50 22,5 20
50 22,5 25
64 22,5 25
50 29,0 32
64 32,0 32
50 35,5 20
50 35,5 25
50 35,5 38
64 35,5 38
64 38,0 38
64 48,5 50
77 60,3 63
91 72,9 76
119 101,0 102
SMS
DN A B C
(mm) thread (mm)
25 22,5 39,7 x 1/6” 25
38 35,5 59,8 x 1/6” 38
51 48,5 69,8 x 1/6” 50
63 60,5 84,8 x 1/6” 63
76 72,8 97,5 x 1/6” 75
101,6 97,6 132 x 1/6” 102
104 100 124,4 x 1/6” 102
TRI-CLAMP IMPERIAL
DN A B C
(inch) (mm) (inch) (mm) (mm) (inch)
1/2 25 1 9,5 6,35 1/4
3/4 25 1 15,8 6,35 1/4
1/2 25 1 9,5 9,52 3/8
3/4 25 1 15,8 9,52 3/8
1/2 25 1 9,5 12,7 1/2
3/4 25 1 15,8 12,7 1/2
1/2 25 1 9,5 19,05 3/4
3/4 25 1 15,8 19,05 3/4
1 50 2 22,1 6,35 1/4
1 1/2 50 2 34,8 6,35 1/4
1 50 2 22,1 9,52 3/8
1 1/2 50 2 34,8 9,52 3/8
1 50 2 22,1 12,7 1/2
1 1/2 50 2 34,8 12,7 1/2
1 50 2 22,1 19,05 3/4
1 1/2 50 2 34,8 19,05 3/4
1 50 2 22,1 25,4 1
1 1/2 50 2 34,8 25,4 1
2 64 2 1/2 47,5 25,4 1
1 1/2 50 2 34,8 38,1 1 1/2
2 64 2 1/2 47,5 38,1 1 1/2
2 64 2 1/2 47,5 50,8 2
2 1/2 77 3 60,2 50,8 2
2 1/2 77 3 60,2 63,5 2 1/2
3 91 3 9/16 72,9 63,5 2
3 91 3 9/16 72,9 76,2 3
4 119 4 11/16 97,4 101,6 4
18
DIN FEMALE
DIN MALE
SMS FEMALE
SMS MALE
CLAMP
CLAMP 90º
CLAMP 45º
