Fuel Delivery
800.355.1991 68 Dixon Bayco 2013
Replacement Parts
Petroleum
Petroleum Replacements
4530 and 4540 Series Gravity Drop Adapters

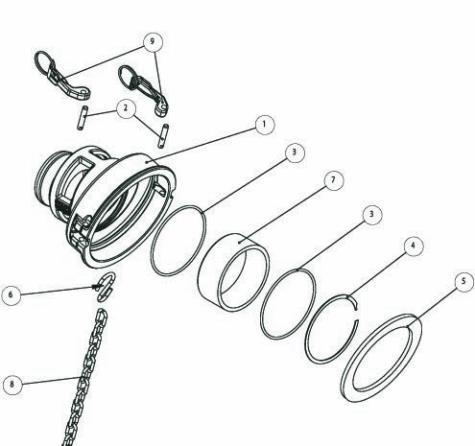

4530SG and 4540SG (with Sight Glass) Gravity Drop Adapters
Bill of Materials
Repair Kits
Item # Description Part # Qty
1 body --- 1
2A Baylast™ O-ring (standard) 4500-5 1
2B Viton® O-ring (standard) 4500-7 1
3 cam arm and ring ACAR34BZ 2
4 cam pin L519-12 2
--- replacement 18" chain andS hook 5205-RK4 1
Part # Description Item #
4500RK cam arms, rings, pins and Baylast™ O-ring 2A, 3, 4
4500RK-V cam arms, rings, pins and Viton® O-ring 2B, 3, 4
5205-RK4 8" security chain and S hook -
Bill of Materials
Repair Kits
Item # Description Part # Qty
1 body --- 1
2 cam arm pin L519-15 2
3 Baylast™ O-ring 112052 2
4 retaining ring 112053 1
5 Baylast™ main gasket 4540SG-RK2 1
6 S hook use kit 5205-RK4 1
7 sight glass use kit 4540SG-RK1 1
8 18" chain use kit 5205-RK4 1
9 cam arm and ring ACAR34BZ 2
Part # Description Item #
4540SG-RK1 sight glass repair kit (fits 3" and 4") 3, 4, 7
4540SG-RK2 Baylast™ main gasket (fits 3" and 4") 5A
4540SG-RK2-V Viton® main gasket (fits 3" and 4") 5B
4540SG-RK3 replacement cam arms and pins (fits
3" and 4") 2, 9
5205-RK4 replacement chain and "S" hook 6, 8
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu

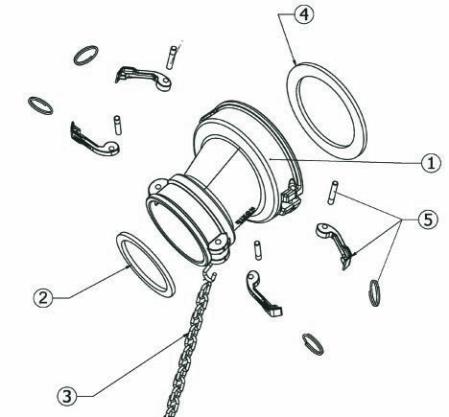

4540F Gravity Drop Adapters
Bill of Materials
Item # Description Part # Qty
1 body --- 1
2 4" Buna fuel gasket 400-G-BF 1
3 18" chain with S hook 5025-RK4 1
4 Baylast™ main gasket 4540SG-RK2 1
5 brass cam arm, pin and fingerring (kit) 300-HRP-BR 4
