Fuel Tanker Loading and Unloading
800.355.1991 Dixon Bayco 2013 67
Petroleum Replacements
Replacement Parts
Petroleum
5000-24 API Dust Caps
5205 API Dust Caps
5000-25 API Dust Caps
Bill of Materials
Repair Kits
Item # Description Part # Qty
1 body --- 1
2 cam arm and ring ACAR34BZ 2
3 cam arm pin L519-18 2
4A Baylast™ O-ring (standard) 4500-5 1
4B Viton® O-ring (optional) 4500-7 1
5 replacement 18" chain and S hook 5205-RK4 1
Part # Description Item #
4500RK replacement cam arms, pins and
Baylast™ O-ring seal (standard) 2, 3, 4A
4500RK-V replacement cam arms, pins and
Viton® O-ring seal (optional) 2, 3, 4B
5205-RK4 replacement 18" chain and S hook 5
Bill of Materials
Item # Description Part # Qty
1 gasket 5000-25RK1 1
2 cam arm sub assembly 5000-25RK2 1
Bill of Materials
Repair Kits
Item # Description Part # Qty

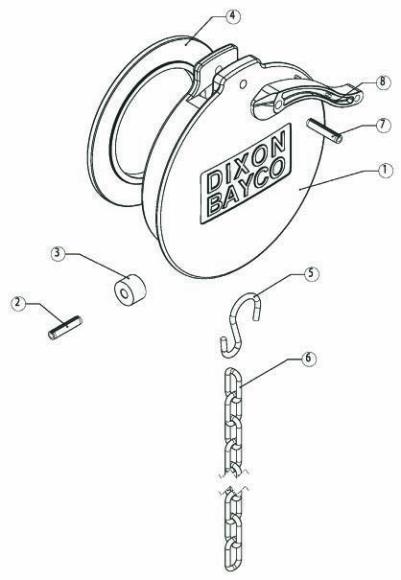

1 body --- 1
2 slotted pin use kit 5205-RK3 1
3 roller use kit 5205-RK3 1
4 gasket 5205-RK1 1
5 S hook use kit 5205-RK4 1
6 18" chain use kit 5205-RK4 1
7 spring pin use kit 5205-RK2 1
8 plastic cam arm use kit 5205-RK2 1
Part # Description Item #
5205-RK1 gasket replacement kit 4
5205-RK2 replacement cam arm and pin 7, 8
5205-RK3 replacement roller and pin 2, 3
5205-RK4 replacement chain and S hook 5, 6
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
