Overfill Products
Overfill Products
EZ-Cept Double and Triple Sockets
Fuel Tanker Overfill Detection
FT390 FT394
Features and Benefits:
• Stainless steel hardware and contact pins prevent corrosion
• Sockets and caps are color coded with industry standardized colors which allows for easy identification of socket type (optic
sockets are blue, thermistor sockets are green, and float sockets are red, colored caps are included for optic and thermistor
models only).
• Guaranteed for Life J-Slots: Our unique stainless steel alloy J-slot ring will probably outlast your trailer.
• Prewired ready for tank installation, no more long hours wiring and troubleshooting your socket connections. Simply bolt to the
trailer and connect to the terminal block in the on board monitor.
• Ground bolt and ID chip ready: Both ground bolt and ID chip are normally mounted inside the EZ-Cept housing to protect
from the corrosive elements. Or if desired, the bolt can be mounted to the trailer frame and the wire connected to the EZ-Cept
internal wire terminal.
• Corrosion resistant hard powder coated housing, stainless steel hardware and contacts and our unique keep dry enclosure
design keeps your trailer in service and corrosion at bay. Take a close look at FloTech EZ-Cept - we challenge you to find a
better constructed API socket on the market.
• Patented, the EZ-Cept has so many innovative features it is covered by US patent 6,824,423. Just another example of how
FloTech is leading the way delivering reliability and innovation to our valued customers.
Part # Description
FT390 Optic 6 pin, 3 J-slot, and thermistor 10 pin, 4 J-slot, horizontal mount, GFL stainless J slot wear rings (US)
FT390V Optic 6 pin, 3 J-slot, and thermistor 10 pin, 4 J-slot, vertical mount, GFL stainless J slot wear rings (US)
FT390G Optic 6 pin, 3 J-slot, and thermistor 10 pin, 4 J-slot, horizontal mount, GFL stainless J slot wear rings, grounding bolt (US)
FT390GT Optic 6 pin, 3 J-slot, and thermistor 10 pin, 4 J-slot, horizontal mount, GFL stainless J slot wear rings, grounding bolt. T.I.M. chip
(US)
FT390T Optic 6 pin, 3 J-slot, and thermistor 10 pin, 4 J-slot, horizontal mount, GFL stainless J slot wear rings, T.I.M. chip (US)
FT390-20 Optic 6 pin, 3 J-slot, and thermistor 10 pin, 4 J-slot, horizontal mount, GFL stainless J slot wear rings, 20' of cable (US)
FT390G-20 Optic 6 pin, 3 J-slot, and thermistor 10 pin, 4 J-slot, horizontal mount, GFL stainless J slot wear rings, grounding bolt, 20' of
cable (US)
FT391 Optic 6 pin, 4 J-slot, and thermistor 10 pin, 4 J-slot, horizontal mount, GFL stainless J slot wear rings (Canada)
FT391V Optic 6 pin, 4 J-slot, and thermistor 10 pin, 4 J-slot, vertical mount, GFL stainless J slot wear rings (Canada)
EZ-Cept Double Sockets
See pages 137 & 138 for repair kits and replacement parts.
Please refer to chart on pages 56-59 for cross references to other manufacturer part numbers.
Part # Description
FT393 Optic 6 pin, 3 J-slot, thermistor 10 pin, 4 J-slot, and float J560, horizontal mount, GFL stainless J slot wear rings (US)
FT394 Optic 6 pin, 3 J-slot, thermistor 10 pin, 4 J-slot, and optic J560, horizontal mount, GFL stainless J slot wear rings (US)
FT394G Optic 6 pin, 3 J-slot, thermistor 10 pin, 4 J-slot, and optic J560, horizontal mount, grounding bolt,
GFL stainless J slot wear rings (US)
FT394V-G Optic 6 pin, 3 J-slot, thermistor 10 pin, 4 J-slot, and optic J560, vertical mount, grounding bolt,
GFL stainless J slot wear rings (US)
FT395 Optic 6 pin, 4 J-slot, thermistor 10 pin, 4 J-slot, and optic J560, horizontal mount, GFL stainless J slot wear rings (Canada)
FT395G Optic 6 pin, 4 J-slot, thermistor 10 pin, 4 J-slot, and optic J560, horizontal mount, grounding bolt,
GFL stainless J slot wear rings (Canada)
FT395V Optic 6 pin, 4 J-slot, thermistor 10 pin, 4 J-slot, and optic J560, horizontal mount, grounding bolt,
GFL stainless J slot wear rings (Canada)
FT395V-G Optic 6 pin, 4 J-slot, thermistor 10 pin, 4 J-slot, and optic J560, vertical mount, grounding bolt,
GFL stainless J slot wear rings (Canada)

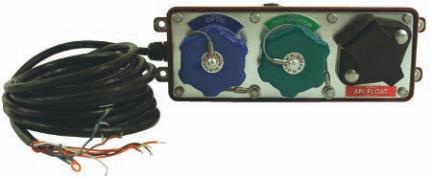

EZ-Cept Triple Sockets
Product instruction sheets and technical data can be viewed on our website at dixonbayco.com by selecting the "Resources" menu
Biofuel Compatible
See pages 135 & 136 for repair kits and replacement parts.
