Overfill
Products
Overfill Products
Single Sockets
Fuel Tanker Overfill Detection
FT300 FT301 FT302
Features and Benefits:
•Single face plate sockets have hard coated aluminum alloy J slot wear rings, these ensure a long service life. Also available
are single sockets with "guaranteed for life" stainless steel wear rings.
•Stainless steel hardware and contact pins prevent corrosion
•Sockets and caps are color coded with industry standardized colors which allows for easy identification of socket type (optic
sockets are blue, thermistor sockets are green, and float sockets are red, colored caps are included for optic and thermistor
models only).
Part # Description

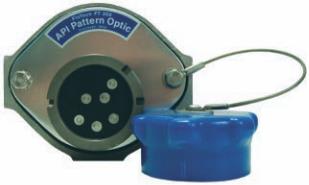

FT300 Optic socket API / WOGA, 6 pin and 3 J-slots (US)
FT303 Optic socket, 6 pin and 4 J-slots (US)
FT307 Optic socket, 6 pin and 4 J-slots (Canada)
FT306 Optic socket, J560 pin type

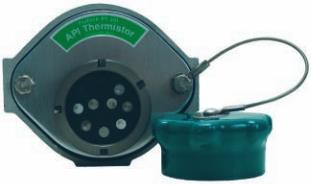

FT301 Thermistor socket, API, 8 pin and 4 J-slots (US)
FT304 Thermistor socket, 10 pin and 4 J-slots (Canada, Europe)
FT305 Thermistor socket, J560 pin type
FT302 Float, API, J560 pin type socket
Replacement face plates and dust caps
FT310 API optic face plate assembly, 6 pin. 3-J slots (US)
FT313 Optic pattern contact assembly with thermistor, 6 pin, 4-J slots (US)
FT317 Optic pattern face plate assembly ,6 pin, 4-J slots (Canada)
FT316 Optic replacement face plate, J560 type
FT311 API thermistor face plate assembly, 8 pin, 4-J slots (US)
FT314 Thermistor face plate assembly, 10 pin 4-J slots. (Canada/Europe)
FT315 Thermistor replacement face plate, J560 type
FT320 Replacement blue optic dust cap
FT321 Replacement green thermistor dust cap
Single Sockets with Aluminum Hardcoat J Slot
Single Sockets with GFL (Guaranteed for Life) Stainless Steel J Slot Wear Rings
GFL series stainless steel nose rings are now available on any configuration J-slot socket that you require. Stainless steel J-slots
outlast competitor versions because they are tougher and more corrosion resistant than any other on the market.
GFL socket J-slots are so tough that they are "Guaranteed for Life" against wear. US patent 6,824,423.
Part # Description
FT300SS Optic socket API / WOGA, 6 pin and 3 J-slots, GFL stainless J slot wear ring (US)
FT303SS Optic socket, 6 pin and 4 J-slots, GFL stainless J slot wear ring (US)
FT307SS Optic socket, 6 pin and 4 J-slots, GFL stainless J slot wear ring (Canada)
FT301SS Thermistor socket, API, 8 pin and 4 J-slots, GFL stainless J slot wear ring (US)
FT304SS Thermistor socket, 10 pin and 4 J-slot, GFL stainless J slot wear ring (Canada, Europe)
Replacement face plates and dust caps
FT310SS API optic face plate assembly, 6 pin, 3-J slots, GFL stainless J slot wear ring (US)
FT313SS Optic pattern contact assembly, 6 pin, 4-J slots, GFL stainless J slot wear ring (US)
FT317SS Optic pattern face plate assembly,6 pin, 4-J slots, GFL stainless J slot wear ring (Canada)
FT311SS API thermistor face plate assembly, 8 pin, 4-J slots, GFL stainless J slot wear ring (US)
FT314SS Thermistor face plate assembly 10 pin 4-J slots, GFL stainless J slot wear ring (Canada, Europe)
FT320 Replacement blue optic dust cap
FT321 Replacement green thermistor dust cap
See pages 132-134 for repair kits and replacement parts.
Please refer to chart on pages 56-59 for cross references to other manufacturer part numbers.
Product instruction sheets and technical data can be viewed on our website at dixonbayco.com by selecting the "Resources" menu
Biofuel Compatible
