Overfill Products
Overfill Products

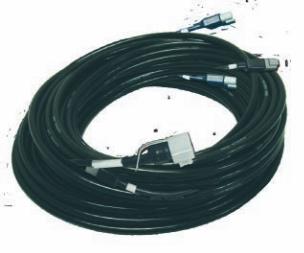

FloTech Checkmate Overfill/Retain Plug-n-Play System
Wiring Harnesses
Fuel Tanker Overfill Detection
Features and Benefits:
•Prewired and factory tested with Plug-n-Play cabling and plugs, eliminates hours of manual crimped wire connections, and
removes the problems and worries associated with connection problems. Easy to install, just mount all the components
(sensors, sockets, monitors) onto the tank and plug them into the preconfigured harness.
•Plug-n-Play cable harnesses come preconfigured for the type of tank (truck mounted tanks or for full length tank trailers) the
number of tank compartments, standard harnesses have been designed to fit most standard tank configurations.
•Custom length harnesses are available.
•Secure and weather tight connections all the time, remove the possibility of poor wiring connections. Sealed connectors pass
IP67 and DIN40050 salt spray tests.
Part # Description
Overfill detection Plug-n-Play cable harnesses for full length tank trailers
FT20801 One compartment tank trailer. Overfill detection (top) cable harness with Plug-n-play connections
FT20802 Two compartment tank trailer. Overfill detection (top) cable harness with Plug-n-play connections
FT20803 Three compartment tank trailer. Overfill detection (top) cable harness with Plug-n-play connections
FT20804 Four compartment tank trailer. Overfill detection (top) cable harness with Plug-n-play connections
FT20805 Five compartment tank trailer. Overfill detection (top) cable harness with Plug-n-play connections
FT20806 Six compartment tank trailer. Overfill detection (top) cable harness with Plug-n-play connections
Retain detection Plug-n-Play cable harnesses for full length tank trailers
FT20801S One compartment tank trailer. Retain (bottom) cable harness with Plug-n-play connections
FT20802S Two compartment tank trailer. Retain (bottom) cable harness with Plug-n-play connections
FT20803S Three compartment tank trailer. Retain (bottom) cable harness with Plug-n-play connections
FT20804S Four compartment tank trailer. Retain (bottom) cable harness with Plug-n-play connections
FT20805S Five compartment tank trailer. Retain (bottom) cable harness with Plug-n-play connections
FT20806S Six compartment tank trailer. Retain (bottom) cable harness with Plug-n-play connections
Overfill detection Plug-n-Play cable harnesses for truck mounted tanks
FT20801TWS One compartment truck mounted tank. Overfill detection (top) cable harness with Plug-n-play connections
FT20802TWS Two compartment truck mounted tank. Overfill detection (top) cable harness with Plug-n-play connections
FT20803TWS Three compartment truck mounted tank. Overfill detection (top) cable harness with Plug-n-play connections
FT20804TWS Four compartment truck mounted tank. Overfill detection (top) cable harness with Plug-n-play connections
FT20805TWS Five compartment truck mounted tank. Overfill detection (top) cable harness with Plug-n-play connections
FT20806TWS Six compartment truck mounted tank. Overfill detection (top) cable harness with Plug-n-play connections
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Biofuel Compatible
