Fuel Delivery/Vapor Recovery
Features & Benefits:
•
Available in standard or tall heights to accommodate deep fill boxes
•
Rugged modular cast aluminum construction
•
Many parts are common throughout the Bayco elbow line, making any necessary
maintenance a breeze.
•
Grease nipple enables the greasing of the lever stem, and acetal bushings help keep everything
moving smoothly, even in the harshest of conditions.
•
Bolt on inlets allow the inlet to be changed without having to worry about galling of threaded
inlets. See below for replacement inlets (Note: Coaxial inlets are not interchangeable with other
Bayco elbow inlets.)
•
Ball handle lever enables the operator to easily and positively engage the solid bronze locking
arms, onto the underground adapter.
•
Top connection is the vapor outlet; lower connection is the fuel delivery inlet.
•
Biofuel compatible up to E100 (100% Ethanol) and B20 (20% bio diesel). For detailed fuel com-
patibility, please refer to the chart shown on page 4.
Single Point Coaxial - Fuel Delivery/Vapor Recovery Elbows
Part #
Description
"A"
Overall
Height
"B"
Ground
Clearance
Fuel Compatibility
6430
Standard height elbow with 3" adapter fuel inlet,
3" adapter vapor outlet
23¾"
11¾"
Gasoline and diesel, up to E100
and B20 biofuels
6430F
Standard height elbow with 3" coupler fuel inlet,
3" adapter vapor outlet
23¾"
11¾"
Gasoline and diesel, up to E100
and B20 biofuels
6400
Standard height elbow with 4" adapter fuel inlet,
3" adapter vapor outlet
23¾"
11¾"
Gasoline and diesel, up to E100
and B20 biofuels
6400F
Standard height elbow with 4" coupler fuel inlet,
3" adapter vapor outlet
23¾"
11¾"
Gasoline and diesel, up to E100
and B20 biofuels
6400FNPT
Standard height elbow with 4" coupler fuel inlet,
3" male NPT vapor outlet
23¾"
11¾"
Gasoline and diesel, up to E100
and B20 biofuels
6430X
Tall height elbow with 3" adapter fuel inlet,
3" adapter vapor outlet
26¾"
14¾"
Gasoline and diesel, up to E100
and B20 biofuels
6430XF
Tall height elbow with 3" coupler fuel inlet,
3" adapter vapor outlet
26¾"
14¾"
Gasoline and diesel, up to E100
and B20 biofuels
6400X
Tall height elbow with 4" adapter fuel inlet,
3" adapter vapor outlet
26¾"
14¾"
Gasoline and diesel, up to E100
and B20 biofuels
6400XF
Tall height elbow with 4" coupler fuel inlet,
3" adapter vapor outlet
26¾"
14¾"
Gasoline and diesel, up to E100
and B20 biofuels
6400XFNPT
Tall height elbow with 4" coupler fuel inlet,
3" male NPT vapor outlet
26¾"
14¾"
Gasoline and diesel, up to E100
and B20 biofuels
Elbow options are shown on page 12, see page 74 for repair kits and replacement parts.
"A"
"B"
"A"
"B"

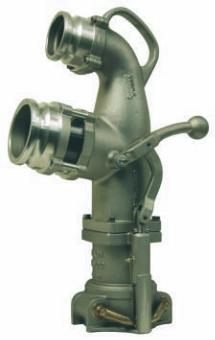

6400

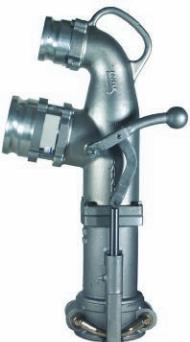

6400X
Biofuel Compatible, see fuel compatibility chart on page 4 for more information.
