Fuel Tanker Overfill Detection
800.355.1991 122 Dixon Bayco 2013
Overfill
Replacement Parts
Overfill Replacements
Plug-n-Play Stand Alone Sockets
FT390PG-20
Repair Kits
Part # Description Includes
Item #
FT320 replacement blue (optic) vinyl cap
assembly 2, 3, 5, 6, 9
FT321 replacement green (thermistor) vinyl
cap assembly 2, 3, 5, 6, 8
FT9051 replacement contact block assembly
for FT390/FT393 Optic 6 pin
1,7, 17, 23,
24
FT9052 replacement contact block assembly
for FT390/FT393 Thermistor 10 pin
1,7, 17, 23,
24
FT9062 replacement nose ring,contact
assembly, Thermistor 4J slot, 10 pin
1, 7, 17, 20,
23, 24
FT9063 replacement nose ring,contact
assembly, Optic 3J slot, 6 pin
1, 7, 17, 21,
23, 24
FT9068 replacement contact block attachement
screws and washers (4 each) 28, 29

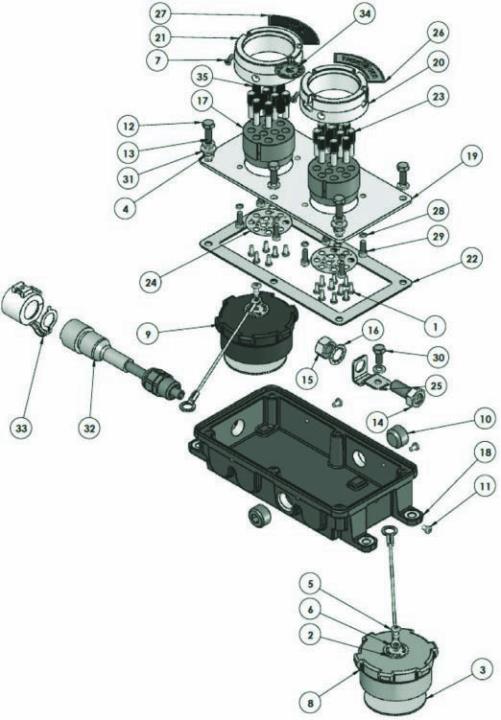

Bill of Materials
Item # Description Part # Qty
1 stainless steel screw 10086 16
2 aluminum name plate - socketwasher usekitFT320orFT321 2
3 aluminum washer 2.500 x .0625 usekitFT320orFT321 2
4 stainless steel spacer 10089 2
5 aluminum rivet .1875 usekitFT320orFT321 2
6 stainless steel cable - socket 8" usekitFT320orFT321 2
7 stainless steel screw - contactblock 10094 2
8 vinyl dust cap - green usekitFT321 1
9 vinyl dust cap - blue usekitFT320 1
10 polypropylene pipe plug 10103 2
11 steel screw - plug 10105 3
12 stainless steel screw 10110 6
13 stainless steel lock washer -1/4" 10111 7
14 stainless steel ground bolt 10223 1
15 stainless steel nut - groundbolt 1/2"-13 10224 1
16 stainless steel lock washerinternal tooth 10225 1
17 plastic contact block - socketshort 10254 2
18 aluminum box - dual socket 10364AL-001 1
19 aluminum faceplate - dualsocket 10365AL 1
20 stainless steel socket -thermistor 10366SS-001 1
21 stainless steel socket - optic 10366SS-002 1
22 cork gasket - lid 10367CK 1
23 stainless steel socket pin -short
10368SS
(was FT9061) 16
24 vinyl label - socket contact 10369VY 2
25 stainless steel bracket -ground bolt 10370SS 1
26 aluminum name plate -thermistor 10373AL 1
27 aluminum name plate - optic 10374AL 1
28 stainless steel lock washer 10375SS 8
29 stainless steel screw 10376SS 8
30 stainless steel screw 10377SS 1
31 stainless steel washer 10382SS 2
32 wiring harness (Plug-n-Play) 20 ft. 10387P-20 1
33 plastic clip 10605PL 1
34 aluminum label - ground bolt 10621AL 1
35 plastic black button insert BLACKBUTTON
INSERT 6
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
