Fuel Tanker Overfill Detection
800.355.1991 Dixon Bayco 2013 121
Overfill Replacements
Overfill
Replacement Parts
Plug-n-Play Stand Alone Sockets FT306P
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu

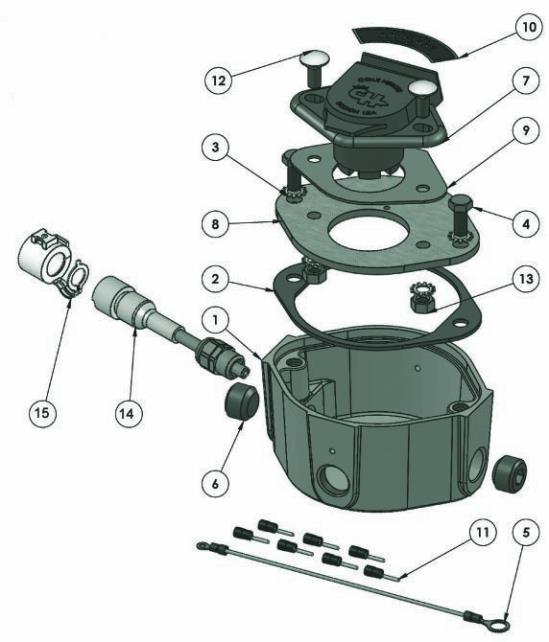

Bill of Materials
Item # Description Part #
FT208PFT208PPC
1 aluminum housing 10031
(was FT9007) 1 n/a
2 neoprene gasket 10038
(was FT9032) 1 1
3 stainless steel lock washer 10092 4 4
4 stainless steel screw 10093 2 2
5 wire, assembly, socket 10095 1 1
6 polypropylene pipe plug 10103 2 2
7 J560 type socket 10119
(was FT9029) 1 1
8 aluminum face plate 10120 1 1
9 neoprene gasket 10121 1 1
10 aluminum name plate - optic 10235 1 1
11 terminal pin 10123 7 7
12 stainless steel carriage bolt 10507SS 2 2
13 stainless steel nut 10508SS 2 2
14 wiring harness (Plug-n-Play) 20 ft. 10387P-20 1 n/a
15 plastic clip 10605PL 1 n/a
Part # Description Includes
Item #
FT316 face plate assembly- Optic J560 socket 2 - 13
Repair Kits
