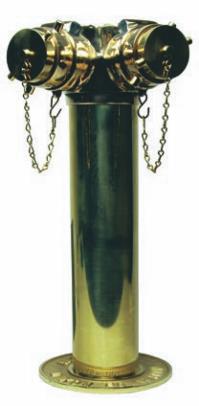

Two Way Sidewalk Siamese Assembly
21-207
Complete unit consists of:
•
(1) 21-133 90° Siamese body, double clapper
•
(2) 17-127 pin lug plugs with chains
•
(1) 23-404 sleeve
•
(1) 24-405 escutcheon plate
•
Listed by Underwriters Laboratories
•
Factory Mutal approved
-P
polished
-C
polished chrome plated
Outlet
Female NPT
(2) Inlets
Female NH (NST)
Dixon Part #
Powhatan Part #
4"
6"
2½"
2½"
2WSA4025F
2WSA4025F-P
2WSA4025F-C
2WSA4025F-SP
2WSA4025F-SP-P
2WSA4025F-SP-C
2WSA6025F
2WSA6025F-P
2WSA6025F-C
2WSA6025F-SP
2WSA6025F-SP-P
2WSA6025F-SP-C
21-207-00001
21-207-00003
21-207-00005
21-207-00002
21-207-00004
21-207-00006
21-207-00007
21-207-00009
21-207-00011
21-207-00008
21-207-00010
21-207-00012
B
A
E
C
D
Size
A
B
C
E
F
4 x 2½ x 2½ 9¼ 10-3/8
10¾ 10-3/8
6-5/8
6 x 2½ x 2½ 11¼ 10½ 11¾ 13
7¼
