Double Clapper Concealed Type Siamese Assemblies
22-229
22-229

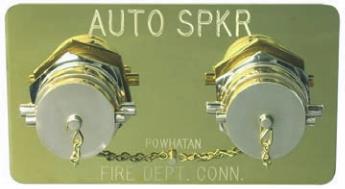

The model 22-229 double clapper Siamese is a complete unit

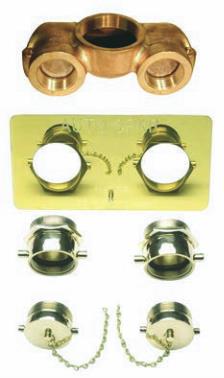

consisting of the following six parts:
• (1) 4025REV90, or 4030REV90, or 90CREV6025
• (1) 24-385 plate
• (2) 23-270 double female connections
• (2) 17-127 plugs with chains
•Cast brass
•Branded: 'standpipe', 'auto-spkr', 'auto-spkr.-standpipe'
•Finish: cast, polished or polished chrome
•For use up to 250 PSI
-P polished
-C polished chrome plated
The unique design of clappers on the REV90 series is fully reversible with a perpendicular trunion allowing one body to be
installed for top and bottom connections.
•Other branding and finishes are also available, consult the factory for pricing and availability
Outlet
Female NPT
(2) Inlets
Female NH (NST) Branding Dixon Part # Powhatan Part #
4"
4"
6"
2½"
3"
2½"
AutoSprinkler
StandPipe
AutoSprinkler
StandPipe
AutoSprinkler
AutoSprinkler
StandPipe
AutoSprinkler
StandPipe
2WCA4025F-P
2WCA4025F-SP-P
2WCA4025F-C
2WCA4025F-SP-C
2WCA4030F-P
2WCA6025F-P
2WCA6025F-SP-P
2WCA6025F-C
2WCA6025F-SP-C
22-229-00001
22-229-00002
22-229-00003
22-229-00004
22-229-00009
22-229-00005
22-229-00006
22-229-00007
22-229-00008
Size A B C E F
24-385 14" 8" 7-5/8" 4-15/16 3-5/8
