Racks & Reels
M
Racks &Reels

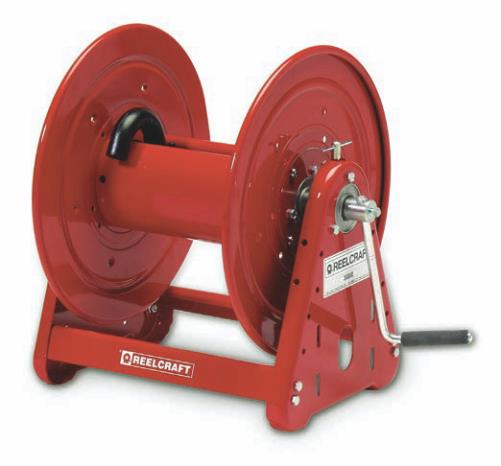

Continuous Flow Hose Reel with Hand Crank
Size Non-collapsible
Hose Capacity
Working Pressure
PSI Part # Wt.
Lbs.
1" 100' of 1" hose 300 CA37118L 58
•all bolted construction - no welds
•adjustable spool rotation drag eliminate hose backlash with
de-reeling
•zinc plated swivel with Viton® O-ring seals
•full flow shaft and ball bearing swivel
•permanently lubricated dual main bearings
•lock pin to prevent spool rotation when the reel is not in use
•NPTF (F) inlet matches swivel size outlet male NPT
•31" wide (including crank) x 21¼" tall x 17¾" deep with a 6"
OD drum
Designed for heavy duty applications requiring long lengths of hose, adaptable to both plant and field use. Trouble-free design
ensures dependable performance and long product life. Reel frame, spool and drum are fabricated from heavy gauge steel with
a durable red powder-coat finish. Easily converted to power-driven types.
