Racks & Reels
M
Racks & Reels

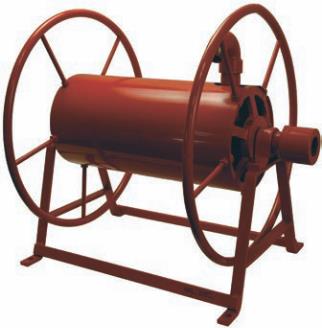

Global Continuous Flow Reel
(original Wirt & Knox design)
Part #
Hose Size
and Capacity Dimensions (inches) Inlet Size
(inches)
Outlet
Size
(inches)
Wt.
(lbs.)
¾" 1" 1½" A B C D E F G
FD47I-150-100 250 150 100 10 20 24 19 31 24¾ 26 1½ NPT 1½ NPT 92
Replacement Inlet Swivel Joints for
Wirt & Knox Continuous Flow Reels
Size Part # Material Weight (lbs)
1"
1½"
1212-0534-4
1212-0540-4
steel
steel
3.3
5
Cover for Dimensions Part #
FD47I-150-100 22" x 24" x 24" FD47-C2
Global Continuous Flow Hose Reel Cover
Optional Adapters (order separately):
FM15S15F = 1½" FNPSH x 1½" MNST brass
FM1515F = 1½" FNPT x 1½" MNST brass
cover
inlet swivel joint
