21
Dixon
877.963.4966
♦
dixonvalve.com
Dust Caps
EZ Boss-Lock Type H Dust Caps
Size
356T6
Aluminum
Part #
Brass
Part #
316 SS
Part #
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
6"
---
AH100EZ
---
AH150EZ
AH200EZ
AH250EZ
AH300EZ
AH400EZ
AH600EZ
---
BH100EZ
---
BH150EZ
BH200EZ
---
BH300EZ
---
---
RH075EZ
RH100EZ
RH125EZ
RH150EZ
RH200EZ
---
RH300EZ
RH400EZ
RH600EZ
Size
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"

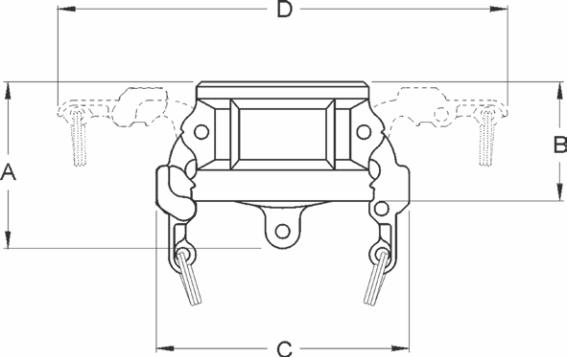

A overall length
---
2-7/32
---
2-15/16 3-1/16
3-7/32
3-1/8
3-3/8
---
3-29/32 4-9/16
B coupler length
---
1-9/16
---
1-29/32 2-3/16
2¼
2-5/16
2-5/16
---
2-5/8
2-13/16
C distance across closed cam arms
---
3¼
---
4-7/32 4-19/32
---
5-23/32 6-27/32
---
10
12-1/32
D distance across open cam arms
---
6-11/32
---
7-25/32 8-5/32
---
9-29/32
11
---
16-25/32 18-25/32
3576T6 aluminum, brass and iron dimensions
Size
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"
A overall length
1-15/16 2-3/16
2¾
2-13/16 3-1/16
---
3-1/8
3-19/32
---
3¾
---
B adapter length
1-5/16
1-9/16 1-29/32 1-29/32 2-3/16
---
2-9/32
2-5/16
---
2-19/32
---
C distance across closed cam arms
3-3/32
3¼
3-29/32 4-7/32 4-19/32
---
5-23/32 6-27/32
---
10
---
D distance across open cam arms
6-7/32 6-11/32 7-15/32 7-25/32 8-5/32
---
9-29/32
11
---
16-25/32
---
316 stainless steel dimensions
Dust caps and dust plugs are not to be used in pressure applications for safety and
environmental reasons.
type H dust cap
aluminum
