20
Dixon
877.963.4966
♦
dixonvalve.com
Dust Caps
Boss-Lock Type H Dust Caps
Size
356T6
Aluminum
Part #
Brass
Part #
Plated Iron
Part #
316 SS
Part #
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
6"
8"
---
AH100
AH125
AH150
AH200
AH250
AH300
AH400
AH600
AH800
1
---
BH100
BH125
BH150
BH200
BH250
BH300
BH400
BH600
---
---
---
---
IH150
IH200
---
IH300
IH400
IH600
---
RH075BL
RH100BL
RH125BL
RH150BL
RH200BL
---
RH300BL
RH400BL
---
---
Size
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"

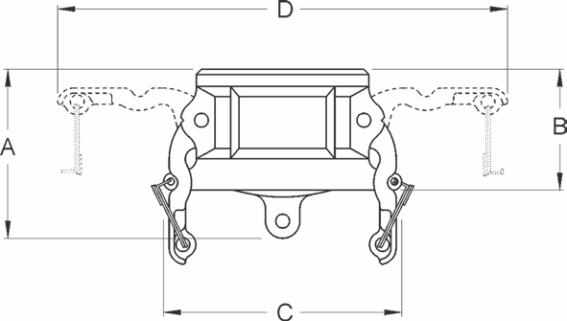

A overall length
---
2-7/32
2¾
2-15/16 3-1/16
3-7/32
3-1/8
3-3/8
---
3-29/32 4-9/16
B coupler length
---
1-9/16 1-29/32 1-29/32 2-3/16
2¼
2-5/16
2-5/16
---
2-5/8
2-13/16
C distance across safety lugs
---
2-29/32
3-5/8
3-29/32 4-5/16 4-13/16 5-9/16 6-11/16
---
9-5/8
11-5/8
D distance across open cam arms
---
5-9/16 7-15/32 7-25/32 8-5/32 8-21/32 9-29/32
11
---
16-5/32 18-5/32
3576T6 aluminum, brass and iron dimensions
Size
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"
A overall length
1-15/16 2-3/16
2¾
2-13/16 3-1/16
---
3-1/8
3-19/32
---
---
---
B adapter length
1-5/16
1-9/16 1-29/32 1-29/32 2-3/16
---
2-9/32
2-5/16
---
---
---
C distance across safety lugs
2-25/32 2-29/32
3-5/8
3-29/32 4-5/16
---
5-9/16 6-11/16
---
---
---
D distance across open cam arms 5-13/32 5-9/16 7-15/32 7-25/32 8-5/32
---
9-29/32
11
---
---
---
316 stainless steel dimensions
1
Dixon and Boss-Lock cam and groove couplings
do not interchange in the 8" size
.
The 8" Boss-Lock design has 2 cam arms.
Dust caps and dust plugs are not to be used in pressure applications for safety and
environmental reasons.
type H dust cap
aluminum
