Pneuclean™ Pneumatic Filtration System
Application: Designed to remove microscopic particles generated by blowers during pneumatic conveying of
contaminant-sensitive dry bulk products. Contaminants such as iron and hydrocarbons are pro-
duced by air blowers and can adversely affect dry products such as plastic pellets and food materi-
als. These filter units are typically mounted on dry bulk tanker trailers, but can also be mounted
on the tractor. Units are placed after the blower and before the bulk storage tanker. This in-line
pneumatic system is also suitable for industrial applications or wherever microscopic filtration (up to
4 microns) of impurities is required.
Standards: Standard units employ 4" inlets and outlets, choose from schedule 40 pipe, grooved pipe, TTMA
flange or 4" cam and groove adapter connections (3" plumbing can be used with available weld-on
4" x 3" cam and groove adapters). FDA approved filter medium.
Materials: Aluminum canister and lid, stainless V clamp
Features & Benefits: •Variety of connection types (see chart below for details)
•Heavy duty aluminum canister
•Overall weight 26 lbs.
•Maximum air flow 1000 CFM
•Special cartridge-style filter element has a typical life expectancy of approximately 12 months or
2000 hours of service
•Noise reduction filter reduces noise by 13.8 db at 600 CFM
•FDA medium with 99.99% maximum efficiency at 4 microns
•Back pressure: 0.05 PSI
•Quick release V clamp for easy inspection and servicing
Part # Description
PC5000 complete Pneuclean™ filtration system with 4" schedule 40 pipe inlet and outlet
PC5000AA complete Pneuclean™ filtration system with 4" cam and groove adapter inlet and outlet
PC5000VV complete Pneuclean™ filtration system with 4" grooved pipe inlet and outlet
PC5000TTTE complete Pneuclean™ filtration system with 4" TTMA flange inlet and 90° 4" male NPT outlet
PC5003 mounting bracket (sold separately, 2 required)
Replacement Parts
Part # Description
PC5001 replacement Pneuclean™ filter element
PC5004 replacement V-clamp for securing lid to body
PC5005 replacement lid O-ring seal
PC5006 replacement canister bottom gasket
PC5007 replacement lid
Product instruction sheets and technical data, can be viewed on our website at dixonbayco.com, and select the "Resources" Menu

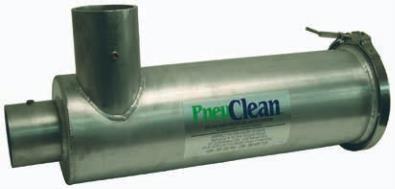

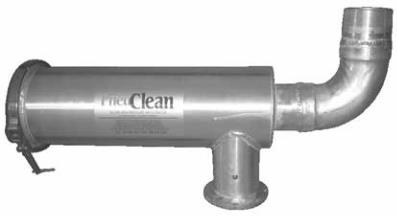

PC5000 PC5000TTTE
