Dry Disconnects Fittings
74 DPL413 877.963.4966 • dixonvalve.com
C

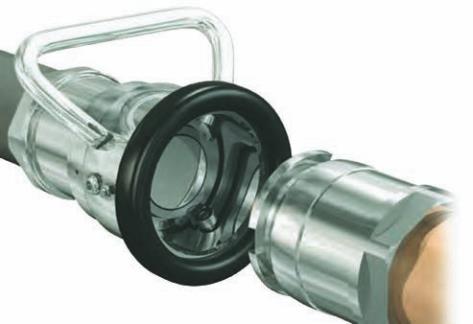

Dry Disconnect Couplings
Applications:
• Dry disconnect couplings are designed for the quick and spill free connection and disconnection of hoses and pipelines.They
are used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a
wide variety of common caustic and specialty acids.
How it Works
Interchanges with Avery Hardoll and Todo-matic®
The principle of operation is identical for all sizes of couplings.
Closed:
• Turn and pull
it's released - no spillage
Open:
• Push and turn
it's coupled - full flow
Features:
•Easy to handle - push and turn - free flow, turn and pull -
closed
• Time saving - no need to drain hoses or pipe systems
• Economical - no loss or spillage of liquids at connection or
disconnection
• Safety - the valve cannot be opened until the unit is coupled
• Environment friendly - accidental spillage eliminated when
proper used
• Safe and reliable - due to rugged construction
• Product life - uncomplicated design and high quality
materials ensures long product life
• Selectivity - To avoid product contamination caused by
connecting a coupler to the wrong adapter, selective
versions of the adapters are available. Contact the factory
for further information.
• produced according to NATO standard STANAG 3756 and
ATOFINA SGM 2049.TUY.C.
• Working Pressure (at ambient temperature (70°F):
aluminum: 300 PSI, up to 4"
brass/ gunmetal *: 300 PSI, up to 4"
stainless steel: 360 PSI
• Optional seals:
EPDM
NBR - nitrile
Kalrez®
Chemraz®
Perlast®
• Seal kits are available
* produced to US government bronze specification G
