Page 672 - DPL413 Complete Catalog for web_wm

Maintenance & Repair
DPL413
T
877.963.4966 • dixonvalve.com 670
Hydrostatic Test Pumps
Hydrostatic Test Pump Accessories
FRL Attachment Accessories
Features:
•5.5 GPM fill rate
• test pressure: 0 to 1500 PSI
• stainless interior
•air gauge for quick, easy
adjustment of maximum test
pressure
• high pressure test gauge
•filter/regulator for clean, dry air
to ensure long life of unit
• on - off valve for air input
•15 ft. of hose included
•easy to use, portable
•Use of coalescing filter and
water filter recommended for
prolonged life.
Features:
•1.3 GPM fill rate
• test pressure: 200 to 2000 PSI
• suction strainer keeps dirt out
of pump
• high pressure test gauge
• 115v motor
•2 ft. power cord
•easy to use, portable
A safe, cost effective pump to test hose before putting it into service.

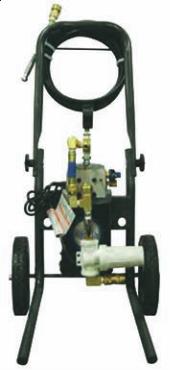

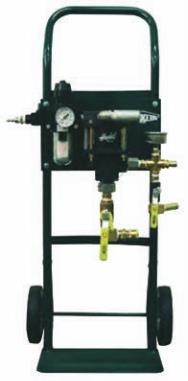

Electric Pneumatic
Features:
•cost effective, pre-assembled caps or plugs to allow quick set up for testing hoses
• Caps and plugs come equipped with ½" brass straight-through plugs for quick attachment to the intermediate hose on the test
pump (Pneumatic Test Pump) and bleed-off valve.
cam & groove test plugs for female couplers cam & groove test caps for male adapters
male NPT test plugs female NPT test caps
bleed-off valve
Description Part # Price/E
electric test pump ETP $4600.00
Description Part # Price/E
pneumatic test pump PTP $6070.00
Size Iron
Part # Price/E
1" ID100TC $160.00
1½" ID150TC 250.00
2" ID200TC 196.50
3" ID300TC 335.00
4" ID400TC 520.00
Size Iron
Part # Price/E
1" IA100TP $140.00
1½" IA150TP 175.00
2" IA200TP 160.00
3" IA300TP 350.00
4" IA400TP 380.00
Size
Iron
Part # Price/E
1" NPT100TC $129.40
1½" NPT150TC 170.00
2" NPT200TC 200.00
3" NPT300TC 350.00
4" NPT400TC 400.00
Size
Iron
Part # Price/E
1" 100TP $205.00
1½" 150TP 220.00
2" 200TP 200.00
3" 300TP 300.25
4" 400TP 405.00
Description Part # Price/E
for pneumatic test pump IBV50BOV $89.80
Description Part # Price/E
3/8" Wilkerson modular coalescing filter (automatic drain) M16-03A $282.00
3/8" Wilkerson modular coalescing filter (manual drain) M16-03M 225.20
modular sleeve needed to connect M16-03A or M16-03M GPA-95-292 17.00
