Valves
P
599 DPL413 877.963.4966 • dixonvalve.com

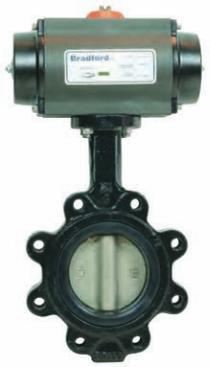

Pneumatically Actuated Lug Butterfly Valves
Features:
•bi-directional stops for ± 5° travel adjustment
•80 PSI plant air required
•maximum operating pressure: 120 PSI
•operating temperature range:-40°F to +200°F
•hard anodized aluminum body
•Namur mounting
•nickel plated anti-blowout pinion
•Buna-N O-rings
•visual position indication
•tested to 1 million cycles
•a wide variety of switches, solenoids, positioners, etc., are
available, contact the factory for details
All dimensions are given in inches, unless noted. Dimensions are approximate. Engineering dimensions are available upon
request. Specifications are subject to change without notice.
A
C B
A
C B
n-H
D2
D1
n-H
D2
D1
Rack and Pinion Actuator
Features:
•cast iron body with extended neck
•nickel plated ductile iron disc
•seat backing ring ensures blowout proof service
•installs between standard ANSI Class 150# flanges
•conforms to MSS-SP-67,MSS-SP-25, API-609
•no taper pins
•field repairable (seat kits available)
•undercut available
•replaceable EPDM seat
•maximum pressure200 PSI(bi-directional)
•temperature range-20°F to 250°F
•a wide variety of seat, disc and body materials are available
Valves
Lug Spring Return
Size A B C D1 D2 n-H Part # Price/E
2" 9.80 8.09 3.74 .75 5.95 4-5/8-11 UNC B5121E200LL-BBC $717.20
2½" 11.65 9.84 4.69 5.50 6.97 4-5/8-11 UNC B5121E250LL-BBC 951.15
3" 11.89 9.84 4.69 6.00 7.56 4-5/8-11 UNC B5121E300LL-BBC 979.50
4" 12.63 9.84 4.69 7.50 8.35 8-5/8-11 UNC B5121E400LL-BBC 1066.15
5" 13.94 13.98 5.53 8.50 9.53 8-5/8-11 UNC B5121E500LL-BBC 1455.45
6" 14.45 13.98 5.53 9.50 11.02 8-5/8-11 UNC B5121E600LL-BBC 1520.15
8" 17.17 16.60 7.29 11.75 13.19 8-5/8-11 UNC B5121E800LL-BBC 2780.35
10" 19.21 19.17 8.06 14.25 15.94 12-7/8-9 UNC B5121E1000LLBBC 3855.00
12" 22.87 25.28 9.37 17.00 19.09 12-7/8-9 UNC B5121E1200LLBBC 6319.00
Lug Double Acting
Size A B C D1 D2 n-H Part # Price/E
2" 9.80 5.87 3.74 4.75 5.95 4-5/8-11 UNC B5121E200LL-BCC $591.30
2½" 10.75 5.87 3.74 5.50 6.97 4-5/8-11 UNC B5121E250LL-BCC 630.75
3" 10.99 5.87 3.74 6.00 7.56 4-5/8-11 UNC B5121E300LL-BCC 659.10
4" 11.73 5.87 3.74 7.50 8.35 8-5/8-11 UNC B5121E400LL-BCC 773.30
5" 13.15 7.20 4.69 8.50 9.53 8-5/8-11 UNC B5121E500LL-BCC 1024.10
6" 13.66 7.20 4.69 9.50 11.02 8-5/8-11 UNC B5121E600LL-BCC 1088.80
8" 15.79 10.22 5.53 11.75 13.19 8-5/8-11 UNC B5121E800LL-BCC 1604.70
10" 17.05 10.22 5.53 14.25 15.94 12-7/8-9 UNC B5121E1000LLBCC 1998.50
12" 20.20 11.98 7.29 17.00 19.09 12-7/8-9 UNC B5121E1200LLBCC 3159.60
Spring Return Double Acting
