Valves
DPL413
P
877.963.4966 • dixonvalve.com
598

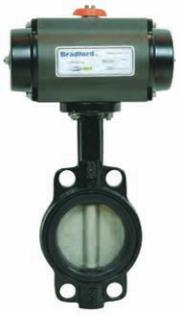

Pneumatically Actuated Wafer Butterfly Valves
Wafer Spring Return
All dimensions are given in inches, unless noted. Dimensions are approximate. Engineering dimensions are available upon
request. Specifications are subject to change without notice.
A
A
B
C
B
C
A
A
D1
n-H
D2
n-H
D1
D2
Features:
•
bi-directional stops for ± 5° travel adjustment
•
80 PSI plant air required
•
maximum operating pressure: 120 PSI
•
operating temperature range:
-40°F
to
+200°F
•
hard anodized aluminum body
•
Namur mounting
•
nickel plated anti-blowout pinion
•
Buna-N O-rings
•
visual position indication
•
tested to 1 million cycles
Rack and Pinion Actuator
Features:
•
cast iron body with extended neck
•
nickel plated ductile iron disc
•
seat backing ring ensures blowout proof service
•
installs between standard ANSI Class 150# flanges
•
conforms to MSS-SP-67, MSS-SP-25,API-609
•
no taper pins
•
field repairable (seat kits available)
•
undercut available
•
replaceable EPDM seat
•
maximum pressure
200 PSI
(bi-directional)
•
temperature range
-20°F
to
250°F
•
a wide variety of seat, disc and body materials are available
Valves
Size
A
B
C
D1
D2
n-H
Part #
Price/E
1½"
9.61
8.09
3.74
3.88 3.74
4-18
B5121E150WW-BBC
$694.60
2"
9.80
8.09
3.74
4.75 3.82
4-18
B5121E200WW-BBC
697.05
2½"
11.65
9.84
4.69
5.50
4.45
4-18
B5121E250WW-BBC
909.55
3"
11.89
9.84
4.69
6.00 4.92
4-18
B5121E300WW-BBC
930.15
4"
12.63
9.84
4.69
7.50 6.14
4-22
B5121E400WW-BBC
988.20
5"
13.94 13.98
5.53
8.50 7.36
4-22
B5121E500WW-BBC
1354.80
6"
14.45 13.98
5.53
9.50
8.46
4-22
B5121E600WW-BBC
1411.15
8"
17.17 16.60
7.29 11.75
10.51
4-22
B5121E800WW-BBC
2654.20
10"
19.21
19.17
8.06 14.25
13.00
4-26
B5121E1000WWBBC
3396.60
12"
22.87 25.28
9.37 17.00 14.96
4-26
B5121E1200WWBBC
8413.35
Wafer Double Acting
Size
A
B
C
D1
D2
n-H
Part #
Price/E
1½"
9.61
5.87
3.74
3.88
3.74 4-18
B5121E150WW-BCC
$568.75
2"
9.80
5.87
3.74
4.75
3.82 4-18
B5121E200WW-BCC
571.15
2½"
10.75
5.87
3.74
5.50
4.45 4-18
B5121E250WW-BCC
589.15
3"
10.99
5.87
3.74
6.00
4.92 4-18
B5121E300WW-BCC
609.75
4"
11.73
5.87
3.74
7.50
6.14 4-22
B5121E400WW-BCC
695.40
5"
13.15
7.20
4.69
8.50
7.36 4-22
B5121E500WW-BCC
923.45
6"
13.66
7.20
4.69
9.50
8.46 4-22
B5121E600WW-BCC
979.80
8"
15.79
10.22
5.53
11.75
10.51
4-22
B5121E800WW-BCC
1478.55
10"
17.05
10.22
5.53
14.25
13.00
4-26
B5121E1000WWBCC
1527.85
12"
20.20
11.98
7.29
17.00 14.96 4-26
B5121E1200WWBCC
2597.30
Spring Return
Double Acting
