Air Fittings
118
DPL413
877.963.4966 • dixonvalve.com
E
In-Line Lubricators

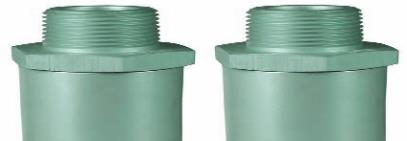

In-Line Air Filters
Application:
•
Designed specifically for the protection of small air tools, such as impact wrenches, nut runners, grinders and screwdrivers.
The all-anodized, lightweight aluminum housing is compact and can be used directly before the air tool.
Features:
•
maximum operating pressure:
500 PSI
•
operating temperatures:
35°F
to
200°F
•
air flow is 140 SCFM
•
male x female
•
standard element is 40 micron, which ensures minimum
pressure drop
•
elements can be replaced quickly
In-Line Lubricator with Filter
Features:
•
Combination unit consists of
9076M
particle filter with 40 micron sintered bronze element and
PL400
(3.7 ounce) or
PL400L
(11.0 ounce) lubricator.
Application:
•
Designed to protect portable or stationary air tools by efficiently oiling the tool mechanisms. Each time an air tool is operated,
a fine mist of oil is injected into it along with the air from the compressor.
Features:
•
Installation is recommended within 25 feet of the tool to be lubricated. Refer to the arrow for proper air flow direction.
•
•
Transparent sight disc allows visual inspection of oil level. Oil flow regulated by screwdriver screw adjustment. Minimum flow
rate is 30 SCFM.
Not recommended for constant flow applications. For reciprocating tools only.
Type of oil to use:
Use any petroleum-based, non-detergent light weight oil (SAE 10/150SSU) which will readily break up
into a mist, i.e., Mobil DTE light or comparable oil.
Do not use any synthetic oil or oils containing additives or solvents.
See page 136 for air tool lubricant.
In-Line Lubricator Base
Replacement Parts
NPT
Size Oil Capacity Max. Working Pressure at
ambient temperature (70°F)
Air Flow at
70 PSI
Aluminum
Part #
Price/E
½"
1.4 fluid ozs.
500 PSI
30 SCFM
PL300
$111.80
¾"
3.7 fluid ozs.
200 PSI
70 SCFM
PL400
116.90
¾"
11.0 fluid ozs.
300 PSI
70 SCFM
PL400L
145.00
1"
16.0 fluid ozs.
250 PSI
100 SCFM
PL500
193.40
Description
Part # Price/E Description
Part # Price/E
(A) oil adjustment valve assembly
851661
$46.00
(D) fill plug O-ring
700013-214
$1.70
(E) sight disk
452532
2.90
(B) valve gasket
452531
2.75
(F) sight disk seal
700013-016
2.00
(C) fill plug
452525
14.00
(G) sight disk lock nut
452533
6.75
Male
NPT
Overall
Length Diameter Weight
Lbs.
Aluminum
Part # Price/E
3/4" 3-13/16" ozs.
1½"
.46
9076M
$72.00
NPT
Size
Oil
Capacity
Max. Work.
Press. at ambient
temp. (70°F)
Aluminum
Part # Price/E
3/4" 3.7 fluid ozs.
200 PSI
PL400WF
$197.10
11.0 fluid ozs.
300 PSI
PL400LWF
223.25
Application:
•
Base can be fitted to any existing PL lubricator, keeps
lubricator from flipping or rolling over, ensuring that it
provides continuous lubrication to the downstream air tool.
Description
Aluminum
Part # Price/E
leveling base for PL300
LB300
$15.00
leveling base for PL400
LB400
15.75
leveling base for PL500
LB500
16.00
A
B
C
D
G
E
F
Lubricator is not included
with the base
