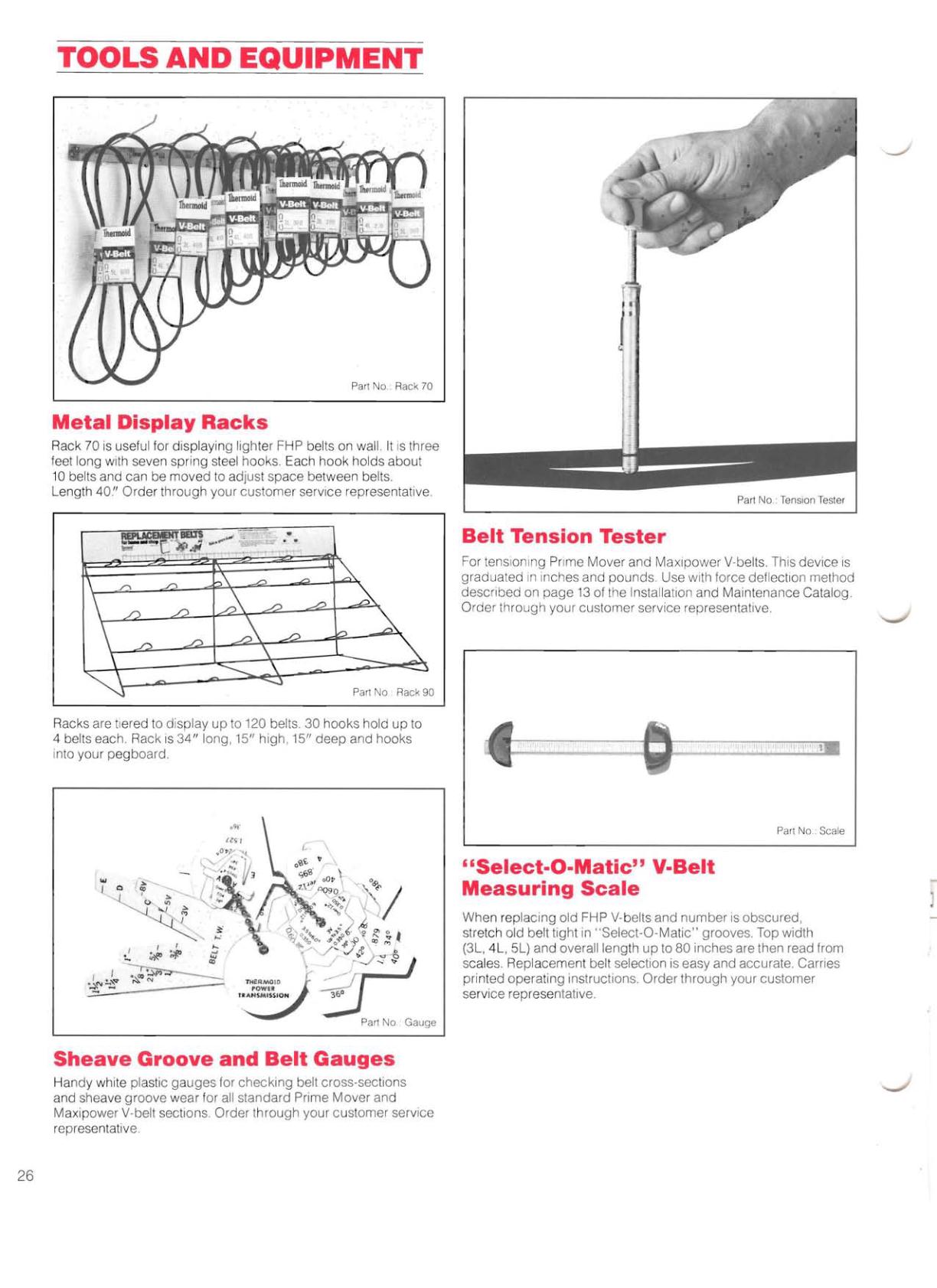

Page 26 - ThermoidPowerTransnmissionBeltsBrochure(HBDTHE-18770)

TOOLS AND EQUIPMENT
Part No .. Tension Tester
Belt Tension Tester
For tensioning Prime Mover and Maxlpower V-belts. This device IS
graduated in Inches and pounds. Use with force deflection method
described on page 13 of the Installation and Maintenance Catalog
Order through your customer service representative.
Part No .. Rack 70
Metal Display Racks
Rack 70 is useful for displaying lighter FHP belts on wall. It IS three
feet long with seven spring steel hooks. Each hook holds about
10 belts and can be moved to adjust space between belts.
Length 40." Order through your customer service representative.
Part No ..
Racks are tiered to display up to 120 belts. 30 hooks hold up to
4 belts each. Rack is 34" long, 15" high, 15" deep and hooks
into your pegboard.
Rack 90
I I
.-","'~~"------- --=--­
Sheave Groove and Belt Gauges
Handy white plastic gauges for checking belt cross-sections
and sheave groove wear for all standard Prime Mover and
Maxipower V-belt sections Order through your customer service
representative.
i'1 Ii
Part No .. Scale
"Select-Q-Matic" V-Belt
Measuring Scale
When replacing old FHP V-belts and number is obscured,
stretch old belt tight in "Select-O-Matic" grooves. Top width
(3L, 4L, 5L) and overall length up to 80 inches are then read from
scales. Replacement belt selection is easy and accurate. Carries
printed operating instructions. Order through your customer
service representative.
26
