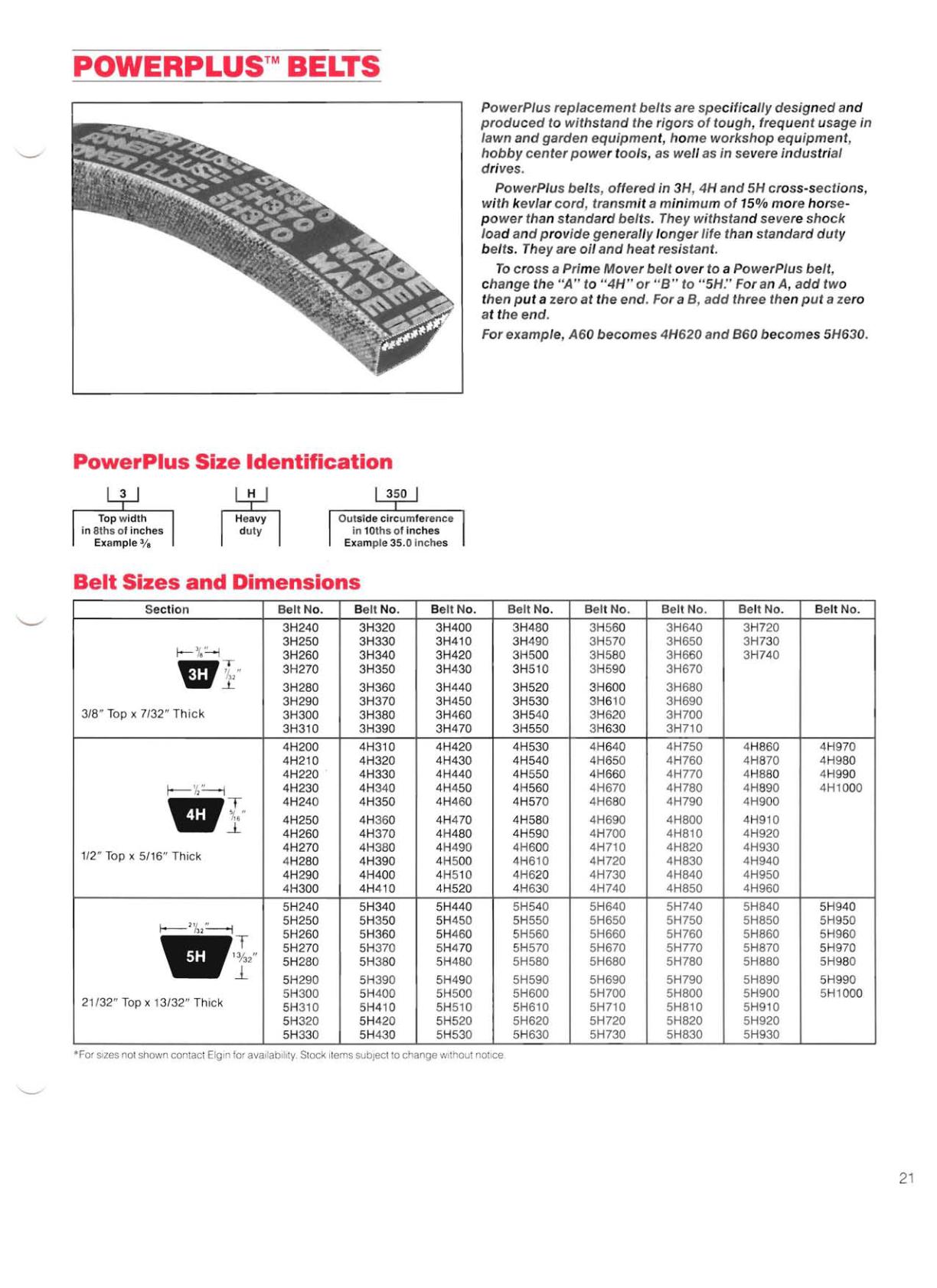

Page 21 - ThermoidPowerTransnmissionBeltsBrochure(HBDTHE-18770)

POWERPLUS™ BELTS
PowerPlus replacement belts are specifically designed and
produced to withstand the rigors of tough, frequent usage in
lawn and garden equipment, home workshop equipment,
hobby center power tools, as well as in severe industrial
drives.
PowerPlus belts, offered in 3H, 4H and 5H cross-sections,
with kevlar cord, transmit a minimum of 15% more horse­
power than standard belts. They withstand severe shock
load and provide generally longer life than standard duty
belts. They are oil and heat resistant.
To cross a Prime Mover belt over to a PowerPlus belt,
change the "A" to "4H" or "B" to "5H." For an A, add two
then put a zero at the end. For a B, add three then put a zero
at the end.
For example, A60 becomes 4H620 and B60 becomes 5H630.
PowerPlus Size Identification
Belt Sizes and Dimensions
Section Belt No. Belt No. Belt No. Belt No. Belt No. Belt No. Belt No. Belt No.
3H240 3H320 3H400 3H480 3H560 3H640 3H720
3H250 3H330 3H410 3H490 3H570 3H650 3H730
f--'!a~ 3H260 3H340 3H420 3H500 3H580 3H660 3H740
urI" 3H270
3H280
3H350
3H360
3H430
3H440
3H510
3H520
3H590
3H600
3H670
3H680
3H290 3H370 3H450 3H530 3H610 3H690
3/8" Top x 7/32" Thick 3H300 3H380 3H460 3H540 3H620 3H700
3H310 3H390 3H470 3H550 3H630 3H710
4H200 4H310 4H420 4H530 4H640 4H750 4H860 4H970
4H210 4H320 4H430 4H540 4H650 4H760 4H870 4H980
4H220 4H330 4H440 4H550 4H660 4H770 4H880 4H990
f--12~ 4H230 4H340 4H450 4H560 4H670 4H780 4H890 4H1000
WI" 4H240
4H250
4H260
4H350
4H360
4H370
4H460
4H470
4H480
4H570
4H580
4H590
4H680
4H690
4H700
4H790
4H800
4H810
4H900
4H910
4H920
1/2" Top x 5/16" Thick
4H270
4H280
4H380
4H390
4H490
4H500
4H600
4H610
4H710
4H720
4H820
4H830
4H930
4H940
4H290 4H400 4H510 4H620 4H730 4H840 4H950
4H300 4H410 4H520 4H630 4H740 4H850 4H960
5H240 5H340 5H440 5H540 5H640 5H740 5H840 5H940
f----- 21" ~ "'12
"
5H250
5H260
5H270
5H280
5H290
5H350
5H360
5H370
5H380
5H390
5H450
5H460
5H470
5H480
5H490
5H550
5H560
5H570
5H580
5H590
5H650
5H660
5H670
5H680
5H690
5H750
5H760
5H770
5H780
5H790
5H850
5H860
5H870
5H880
5H890
5H950
5H960
5H970
5H980
5H990
21/32" Top x 13/32" Thick 5H300
5H310
5H400
5H410
5H500
5H510
5H600
5H610
5H700
5H710
5H800
5H810
5H900
5H910
5H1000
5H320 5H420 5H520 5H620 5H720 5H820 5H920
5H330 5H430 5H530 5H630 5H730 5H830 5H930
'For sizes not shown contact Elgin for availability. Stock items subject to change without notice.
