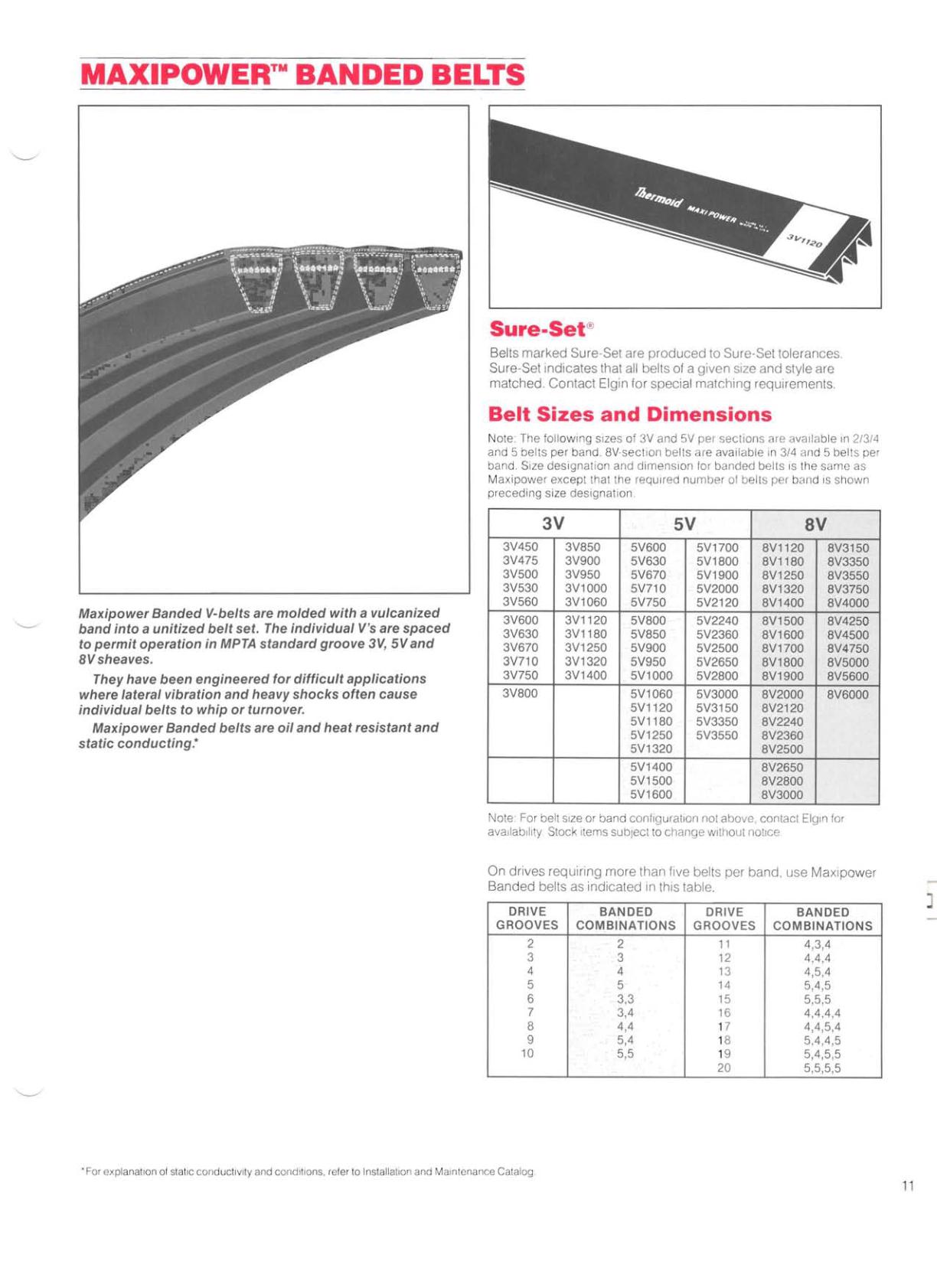

Page 11 - ThermoidPowerTransnmissionBeltsBrochure(HBDTHE-18770)

MAXIPOWERTM BANDED BELTS
Maxipower Banded V-belts are molded with a vulcanized
band into a unitized belt set. The individual V's are spaced
to permit operation in MPTA standard groove 311, 5Vand
BVsheaves.
They have been engineered for difficult applications
where lateral vibration and heavy shocks often cause
individual belts to whip or turnover.
Maxipower Banded belts are oil and heat resistant and
static conducting.'
DRIVE BANDED DRIVE BANDED
GROOVES COMBINATIONS GROOVES COMBINATIONS
2 2 11 4,3,4
3 3 12 4,4,4
4 4 13 4,5,4
5 5 14 5,4,5
6 3,3 15 5,5,5
7 3,4 16 4,4,4,4
8 4,4 17 4,4,5,4
9 5,4 18 5,4,4,5
10 5,5 19 5,4,5,5
20 5,5,5,5
Sure-Set®
Belts marked Sure-Set are produced to Sure-Set tolerances.
Sure-Set indicates that all belts of a given size and style are
matched. Contact Elgin for special matching requirements.
Belt Sizes and Dimensions
Note The following sizes of 3V and 5V per sections are available in 2/3/4
and 5 belts per band. 8V-section belts are available in 3/4 and 5 belts per
band. Size designation and dimension for banded belts is the same as
Maxipower except that the reqUired number of belts per band IS shown
preceding size designation
3V 5V 8V
3V450 3V850 5V600 5V1700 8V1120 8V3150
3V475 3V900 5V630 5V1800 8V1180 8V3350
3V500 3V950 5V670 5V1900 8V1250 8V3550
3V530 3V1000 5V710 5V2000 8V1320 8V3750
3V560 3V1060 5V750 5V2120 8V1400 8V4000
3V600 3V1120 5V800 5V2240 8V1500 8V4250
3V630 3V1180 5V850 5V2360 8V1600 8V4500
3V670 3V1250 5V900 5V2500 8V1700 8V4750
3V710 3V1320 5V950 5V2650 8V1800 8V5000
3V750 3V1400 5V1000 5V2800 8V1900 8V5600
3V800 5V1060 5V3000 8V2000 8V6000
5V1120 5V3150 8V2120
5V1180 5V3350 8V2240
5V1250 5V3550 8V2360
5V1320 8V2500
5V1400
5V1500
5V1600
8V2650
8V2800
8V3000
Note For belt size or band configuration not above, contact Elgin for
availability. Stock items subject a change without notice
On drives requiring more than five belts per band, use Maxipower
Banded belts as indicated in this table.
. For explanation of static conductivity and conditions, refer to Installation and Maintenance Catalog
