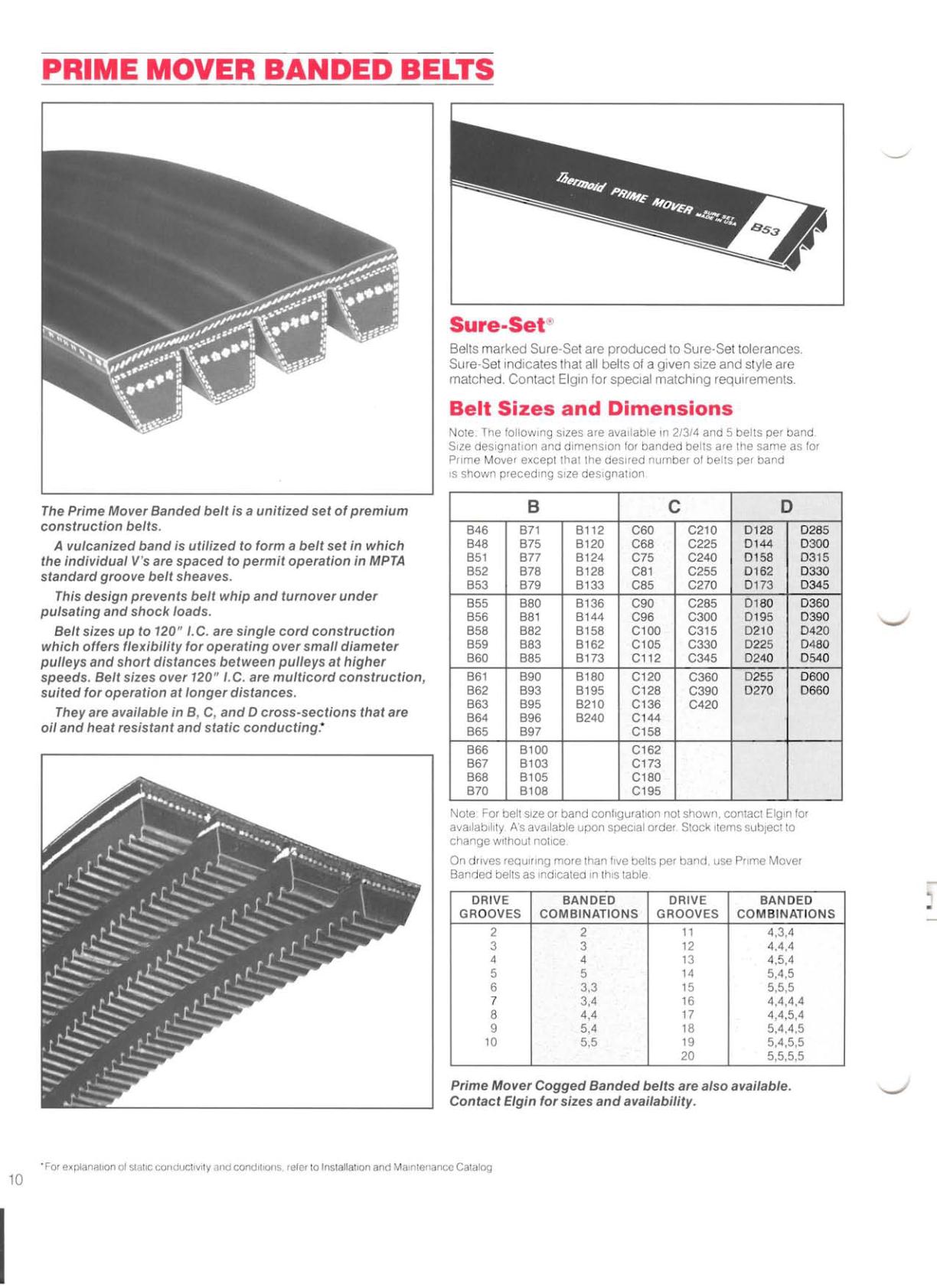

PRIME MOVER BANDED BELTS
The Prime Mover Banded belt is a unitized set of premium
construction belts.
A vulcanized band is utilized to form a belt set in which
the individual V's are spaced to permit operation in MPTA
standard groove belt sheaves.
This design prevents belt whip and turnover under
pulsating and shock loads.
Belt sizes up to 120" I.C. are single cord construction
which offers flexibility for operating over small diameter
pulleys and short distances between pulleys at higher
speeds. Belt sizes over 120" I.C. are multicord construction,
suited for operation at longer distances.
They are available in B, C, and 0 cross-sections that are
oil and heat resistant and static conducting:
Prime Mover Cogged Banded belts are also available.
Contact Elgin for sizes and availability.
•For explanation of slatlc conductivity and conditions, refer to Installation and Maintenance Catalog
Sure-Set®
Belts marked Sure-Set are produced to Sure-Set tolerances.
Sure-Set indicates that all belts of a given size and style are
matched. Contact Elgin for special matching requirements.
Belt Sizes and Dimensions
Note The following sizes are available in 2/3/4 and 5 belts per band.
Size designation and dimension for banded belts are the same as for
Prime Mover except that the desired number of belts per band
IS shown preceding size designation.
B C 0
846 871 8112 C60 C210 0128 0285
848 875 8120 C68 C225 0144 0300
851 877 8124 C75 C240 0158 0315
852 878 8128 C81 C255 D162 0330
853 879 8133 C85 C270 0173 0345
855 880 8136 C90 C285 0180 0360
856 881 8144 C96 C300 0195 0390
858 882 8158 C100 C315 0210 0420
859 883 8162 C105 C330 0225 0480
860 885 8173 C112 C345 0240 0540
861 890 8180 C120 C360 0255 0600
862 893 8195 C128 C390 0270 0660
863 895 8210 C136 C420
864 896 8240 C144
865 897 C158
866 8100 C162
867 8103 C173
868 8105 C180
870 8108 C195
Note For belt size or band configuration not shown, contact Elgin for
availability. A's available upon special order. Stock Items subject to
change without notice
On drives requiring more than five belts per band, use Prime Mover
Banded belts as indicated in this table.
DRIVE BANDED DRIVE BANDED
GROOVES COMBINATIONS GROOVES COMBINATIONS
2 2 11 4,3,4
3 3 12 4,4,4
4 4 13 4,5,4
5 5 14 5,4,5
6 3,3 15 5,5,5
7 3,4 16 4,4,4,4
8 4,4 17 4,4,5,4
9 5,4 18 5,4,4,5
10 5,5 19 5,4,5,5
20 5,5,5,5
