Page 41 - CF Catalog 2-10

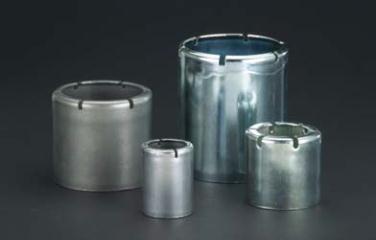

FERRULES
for use with products shown below only:
Plated Steel
hose ferrule part list
size i.d. number each
3/4 1-20/64 FPS075120 7.48
3/4 1-24/64 FPS075124 7.48
3/4 1-28/64 FPS075128 7.48
3/4 1-32/64 FPS075132 7.48
1 1-32/64 FPS100132 9.86
1 1-36/64 FPS100136 9.86
1 1-40/64 FPS100140 9.86
1 1-44/64 FPS100144 9.86
1 1-48/64 FPS100148 9.86
1 1-52/64 FPS100152 9.86
1-1/4 1-52/64 FPS125152 10.25
1-1/4 1-56/64 FPS125156 10.25
1-1/4 1-60/64 FPS125160 10.25
1-1/2 1-60/64 FPS150160 11.24
1-1/2 2 FPS150200 11.24
1-1/2 2-4/64 FPS150204 11.24
1-1/2 2-8/64 FPS150208 11.24
1-1/2 2-12/64 FPS150212 11.24
1-1/2 2-16/64 FPS150216 11.24
1-1/2 2-20/64 FPS150220 11.24
1-1/2 2-24/64 FPS150224 11.24
2 2-32/64 FPS200232 13.63
2 2-36/64 FPS200236 13.63
2 2-40/64 FPS200240 13.63
2 2-44/64 FPS200244 13.63
2 2-48/64 FPS200248 13.63
2 2-52/64 FPS200252 13.63
2 2-56/64 FPS200256 13.63
2 2-60/64 FPS200260 13.63
2-1/2 3-8/64 FPS250308 18.13
2-1/2 3-12/64 FPS250312 18.13
2-1/2 3-16/64 FPS250316 18.13
2-1/2 3-20/64 FPS250320 18.13
2-1/2 3-28/64 FPS250328 18.13
3 3-36/64 FPS300336 18.40
3 3-40/64 FPS300340 18.40
3 3-44/64 FPS300344 18.40
3 3-48/64 FPS300348 18.40
3 3-52/64 FPS300352 18.40
3 3-56/64 FPS300356 18.40
3 3-60/64 FPS300360 18.40
3 4 FPS300400 18.40
4 4-36/64 FPS400436 24.16
4 4-40/64 FPS400440 24.16 43
G
®
4 4-44/64 FPS400444 24.16
4 4-48/64 FPS400448 24.16
4 4-52/64 FPS400452 24.16
4 4-56/64 FPS400456 24.16
4 4-60/64 FPS400460 24.16
4 5 FPS400500 24.16
4 5-4/64 FPS400504 24.16
6 6-40/64 FPS600640 51.54
6 6-56/64 FPS600656 51.54
6 7-8/64 FPS600708 51.54
6 7-24/64 FPS600724 51.54
304 Stainless
1/2 1 FSS050100 7.64
1/2 1-4/64 FSS050104 7.64
1/2 1-8/64 FSS050108 7.64
3/4 1-16/64 FSS075116 7.96
3/4 1-20/64 FSS075120 7.96
3/4 1-24/64 FSS075124 7.96
3/4 1-28/64 FSS075128 7.96
3/4 1-32/64 FSS075132 7.96
1 1-32/64 FSS100132 9.99
1 1-36/64 FSS100136 9.99
1 1-40/64 FSS100140 9.99
1 1-44/64 FSS100144 9.99
1 1-48/64 FSS100148 9.99
1 1-52/64 FSS100152 9.99
1-1/4 1-52/64 FSS125152 10.76
1-1/4 1-56/64 FSS125156 10.76
1-1/4 1-60/64 FSS125160 10.76
1-1/2 1-60/64 FSS150160 15.45
1-1/2 2 FSS150200 15.45
1-1/2 2-4/64 FSS150204 15.45
1-1/2 2-8/64 FSS150208 15.45
1-1/2 2-12/64 FSS150212 15.45
1-1/2 2-16/64 FSS150216 15.45
1-1/2 2-20/64 FSS150220 15.45
1-1/2 2-24/64 FSS150224 15.45
2 2-32/64 FSS200232 18.57
2 2-36/64 FSS200236 18.57
2 2-40/64 FSS200240 18.57
2 2-44/64 FSS200244 18.57
2 2-48/64 FSS200248 18.57
2 2-52/64 FSS200252 18.57
2 2-56/64 FSS200256 18.57
2 2-60/64 FSS200260 18.57
2-1/2 3-8/64 FSS250308 26.69
2-1/2 3-12/64 FSS250312 26.69
2-1/2 3-16/64 FSS250316 26.69
2-1/2 3-20/64 FSS250320 26.69
2-1/2 3-28/64 FSS250328 26.69
3 3-36/64 FSS300336 30.44
3 3-40/64 FSS300340 30.44
3 3-44/64 FSS300344 30.44
3 3-48/64 FSS300348 30.44
3 3-52/64 FSS300352 30.44
3 3-56/64 FSS300356 30.44
3 3-60/64 FSS300360 30.44
3 4 FSS300400 30.44
4 4-36/64 FSS400436 70.70
4 4-40/64 FSS400440 70.70
4 4-44/64 FSS400444 70.70
4 4-48/64 FSS400448 70.70
4 4-52/64 FSS400452 70.70
4 4-56/64 FSS400456 70.70
4 4-60/64 FSS400460 70.70
4 5 FSS400500 70.70
4 5-4/64 FSS400504 70.70
Crimpnology
Nipples
(page 11)
Campbell
Cobra
Parts C & E
(page 15)
ChemJoint
Couplings &
Male Stems
(page 31)
FERRULES
continued on next page
