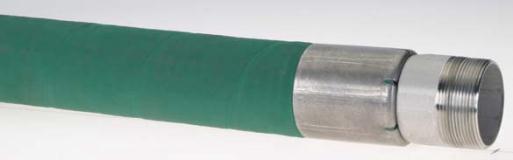

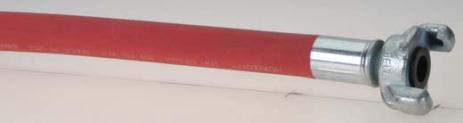

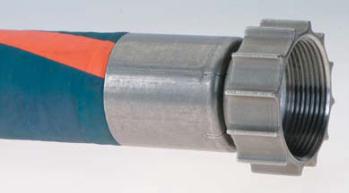

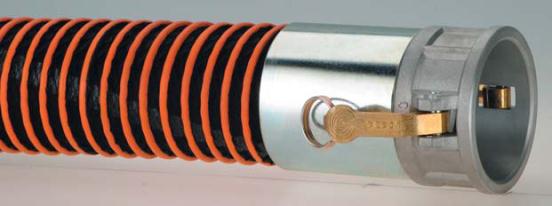

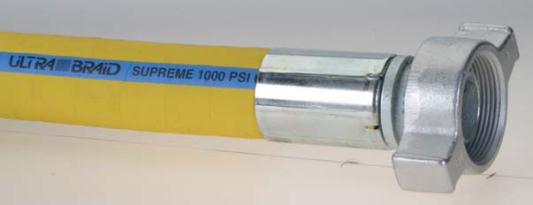

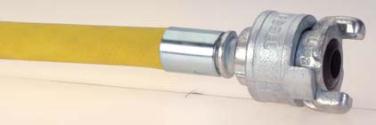

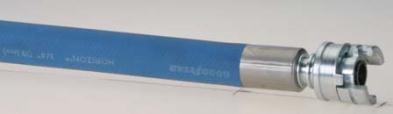

G Ferrules & Sleeves for High, Medium, and Low-Pressure Hose Systems
Performance-Rated
All Campbell pressure ratings are established and verified by hydrostatic
testing to a 4X safety factor where applicable (see page 1 for pressure
rating information). Test data and information regarding various combina-
tions of hoses and fittings are available upon request.
Note: Campbell sleeves may be used on non-Campbell fittings. We
cannot provide crimp specifications or recommend working pressures for
non-Campbell parts. The pressure ratings in this catalog are valid only
when using all Campbell parts. For safety and quality assurance, always
proof test hose assembly according to NAHAD guidelines.
CampbellCrimpnology™ ...
the only comprehensive package of
crimping products in the industry!
CampbellCrimpnology™
Crimpnology refers to all of the technology involved in crimping: the
integrated design of every fitting, coupling, ferrule, and sleeve; the crimp
procedures; crimp specifications; and crimp training & support.
Features and Benefits
Crimpnology offers the following “7 Essentials” for crimping safe, repeatable,
performance-rated hose systems:
• Interlock groove on all fittings and couplings is compatible with the
turn-in end of the ferrule to ensure a 360° ferrule-to-fitting interlock.
• Serrations specifically designed for crimping provide
maximum hose retention without potential tube failure.
• Shank length and ferrule/sleeve length are matched
to maximize retention and to avoid hose tube or
cover damage.
• Detailed assembly procedures are
provided, including information to ensure
use of compatible components.
• Detailed crimping procedures (right) ensure
appropriate crimp specification is derived for each
hose and fitting combination.
• On-site crimping training by a Hose System Specialist,
including a CD/video for review (left), is offered by
Campbell to assist distributor personnel.
• A daytime, toll-free “hotline” is manned by a Campbell
Hose System Specialist to assist in all aspects of training.
The turn-in of the ferrule
interlocks with the machined
groove on the fitting or coupling,
providing a mechanical attachment
for exceptional hose retention
FERRULE
FITTING
HOSE
INTERLOCK
FERRULE & SLEEVE PART NUMBERING
F PS 150 216 L
PRODUCT
F = Ferrule
S = Sleeve
MATERIAL
PS = Plated Steel
SS = Stainless Steel
NOMINAL HOSE SIZE
150 = 1-1/2”
200 = 2”
FERRULE/SLEEVE I.D.
216 = 2-16/64”
340 = 3-40/64”
NON-STANDARD LENGTH
L = Long
S = Short
