Page 28 - CF Catalog 2-10

30
PHONE 800-367-3678
FAX 800-367-3670
FERRULES 2 2-32/64 FPS200232L 19.20
2 2-36/64 FPS200236L 19.20
2 2-40/64 FPS200240L 19.20
2 2-44/64 FPS200244L 19.20
2 2-48/64 FPS200248L 19.20
2 2-52/64 FPS200252L 19.20
2 2-56/64 FPS200256L 19.20
2 2-60/64 FPS200260L 19.20
2-1/2 3-8/64 FPS250308L 26.40
2-1/2 3-12/64 FPS250312L 26.40
2-1/2 3-16/64 FPS250316L 26.40
2-1/2 3-20/64 FPS250320L 26.40
2-1/2 3-28/64 FPS250328L 26.40
3 3-36/64 FPS300336L 27.07
3 3-40/64 FPS300340L 27.07
3 3-44/64 FPS300344L 27.07
3 3-48/64 FPS300348L 27.07
3 3-52/64 FPS300352L 27.07
3 3-56/64 FPS300356L 27.07
3 3-60/64 FPS300360L 27.07
3 4 FPS300400L 27.07
4 4-40/64 FPS400440L 36.75
4 4-44/64 FPS400444L 36.75
4 4-48/64 FPS400448L 36.75
4 4-52/64 FPS400452L 36.75
4 4-56/64 FPS400456L 36.75
4 4-60/64 FPS400460L 36.75
4 5 FPS400500L 36.75
4 5-4/64 FPS400504L 36.75

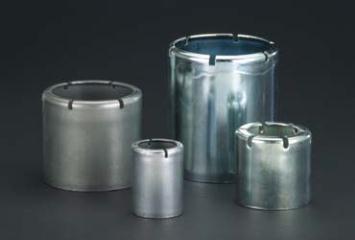

FERRULES
for ground joints
Plated Steel
hose ferrule part list
size i.d. number each
1/2 1 FPS050100S 7.48
1/2 1-4/64 FPS050104S 7.48
1/2 1-8/64 FPS050108S 7.48
3/4 1-16/64 FPS075116 7.48
3/4 1-20/64 FPS075120 7.48
3/4 1-24/64 FPS075124 7.48
3/4 1-28/64 FPS075128 7.48
3/4 1-32/64 FPS075132 7.48
1 1-32/64 FPS100132 9.86
1 1-36/64 FPS100136 9.86
1 1-40/64 FPS100140 9.86
1 1-44/64 FPS100144 9.86
1 1-48/64 FPS100148 9.86
1 1-52/64 FPS100152 9.86
1-1/4 1-52/64 FPS125152L 13.21
1-1/4 1-56/64 FPS125156L 13.21
1-1/4 1-60/64 FPS125160L 13.21
1-1/2 1-60/64 FPS150160L 15.81
1-1/2 2 FPS150200L 15.81
1-1/2 2-4/64 FPS150204L 15.81
1-1/2 2-8/64 FPS150208L 15.81
1-1/2 2-12/64 FPS150212L 15.81
1-1/2 2-16/64 FPS150216L 15.81
1-1/2 2-20/64 FPS150220L 15.81
1-1/2 2-24/64 FPS150224L 15.81
For a complete listing of
all Ferrules and Sleeves,
go to Section G.
These ferrules should never
be used for steam applications
