WING NUT
Ductile Iron
part list
size number each
3/4 HN-3 12.60
1 HN-3 12.60
DOUBLE SPUD
Steel
part list
size number each
3/4 HDS-3 31.13
1 HDS-3 31.13
DEAD END
Steel
part list
size number each
3/4 HDC-3 62.61
1 HDC-3 62.61
29
D
®
SINGLE U-BOLT
hose hose hose part list
o.d. min o.d. max size number each
13/16 1-1/32 1/2 IC-2 7.32
1-1/16 1-1/4 3/4 IC-3S 9.15
1-3/32 1-3/8 3/4 IC-3 9.08
DOUBLE U-BOLT
hose hose hose part list
o.d. min o.d. max size number each
1-5/16 1-1/2 1 IC-4 17.14
1-1/2 1-11/16 1 IC-4L 17.14
1-9/16 2 1-1/4 IC-5 30.71
1-15/16 2-3/16 1-1/2 IC-6 29.80
2-3/16 2-3/8 1-1/2 IC-6L 25.91
2-11/32 2-11/16 2 IC-8 35.81
2-11/16 2-15/16 2 IC-8L 30.48
3 3-9/32 2-1/2 IC-10 45.42
3-9/32 3-9/16 2-1/2 IC-10L 62.49
TRIPLE U-BOLT
hose hose hose part list
o.d. min o.d. max size number each
3-5/16 3-3/4 3 IC-12S 70.09
3-11/16 4-1/8 3 IC-12 74.53
4-1/16 4-1/2 3 IC-12L 109.71
4-5/16 4-3/4 4 IC-16S 210.34
4-11/16 5-1/8 4 IC-16 210.34
5-1/16 5-1/2 4 IC-16L 344.93
For your convenience, clamps are available bulk packed, upon request.
Bulk pack price is the same as listed above. (IC-2 through IC-4L are
packed 25 pieces per carton. IC-5 through IC-8L are packed 10 per
carton.)
WHIP CHECK SAFETY CABLE
(hose to hose)
hose part list
size number each
1/2 WC-1 20.66
3/4 WC-1 20.66
1 WC-1 20.66
1-1/4 WC-2 34.27
1-1/2 WC-2 34.27
2 WC-2 34.27

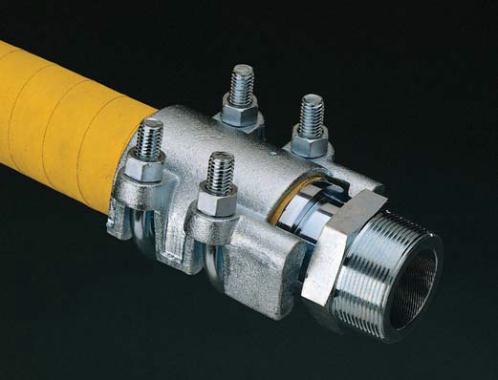

INTERLOCKING U-BOLT CLAMPS
CASTING •
HOSE
•
FITTING •
LINER •
U-BOLT
•

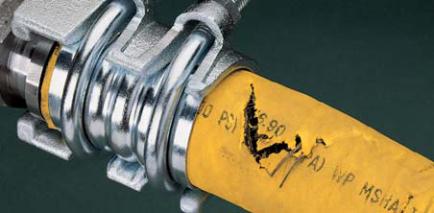

This 2" 1000 psi rated hose exploded in a test at 5200 psi.
The hose exceeded its minimum 4X safety factor.
The fitting and clamp exceeded the capacity of the hose. FERRULES FOR GROUND JOINT COUPLINGS,
AIR HAMMER COUPLINGS, AND MALE STEMS
