Center Punch
Inside
Package
Package Application
201 SS*
GCS*
Width
Thickness
Diameter Quantity
Weight
Tools
Part No. Part No. In mm
In mm In mm
Lbs Kg
CP3S99 CP0399 3/8 9.6
0.025 0.64 13/16 20 100/box
3.6 1.6
S03869
CP311S CP3119 3/8 9.6
0.025 0.64 1-3/8 35 100/box
4.6 2.1
T30069
CP4S99 CP0499 5/8 15.9 0.025 0.64
1 25 100/box
8.3 3.8
CP5S99 CP0599 5/8 15.9 0.025 0.64 1-1/4 32 100/box
8.7 4.0
CP6S99 CP0699 5/8 15.9 0.025 0.64 1-1/2 38 100/box
9.7 4.4
CP7S99 CP0799 5/8 15.9 0.025 0.64 1-3/4 44 100/box
10.6 4.8
CP8S99 CP0899 5/8 15.9 0.025 0.64
2 51 100/box
11.5 5.2
CP9S99 CP0999 5/8 15.9 0.025 0.64 2-1/4 57 100/box
12.6 5.7
S03869
CP10S9 CP1099 5/8 15.9 0.025 0.64 2-1/2 64 50/box
6.8 3.1
T30069
CP11S9 CP1199 5/8 15.9 0.025 0.64 2-3/4 70 50/box
7.3 3.3
SM1700
CP12S9 CP1299 5/8 15.9 0.025 0.64
3 76 50/box
7.7 3.5 SET9000
™
CP14S9 CP1499 5/8 15.9 0.025 0.64 3-1/2 89 50/box
8.7 4.0
CP16S9 CP1699 5/8 15.9 0.025 0.64
4 102
25/box
4.9 2.2
CP18S9 CP1899 5/8 15.9 0.025 0.64 4-1/2 114
25/box
5.5 2.5
CP20S9 CP2099 5/8 15.9 0.025 0.64
5 127
25/box
5.9 2.7
CP24S9 CP2499 5/8 15.9 0.025 0.64
6 152
25/box
6.8 3.1
CP26S9 CP2699 5/8 15.9 0.025 0.64 6-1/2 165
25/box
7.1 3.3
CP28S9 CP2899 5/8 15.9 0.025 0.64
7 178
25/box
7.4 3.4
CP32S9 CP3299 5/8 15.9 0.025 0.64
8 203
25/box
8.2 3.7
S03869
T30069
BAND-FAST™ Open End with Center Punch Clip
Inside Diameter
Package Package Application
Part No. Material*
Width
Thickness Length** Single Wrap Double Wrap Quantity
Weight
Tools
In mm In mm In mm In
mm
In mm
Lbs Kg
O311S9
SS
3/8 9.6
0.020 0.51 15.0 381 2-3/4 70
1-3/8
35 100/box 5.2 2.4
O316S9
SS
3/8 9.6
0.020 0.51 18.0 457 4 101
2 50
100/box 5.9 2.7
O325S9
SS
3/8 9.6
0.020 0.51 24.0 610 6 152
3 76
100/box 6.4 2.9
S03869
O10S99
SS
5/8 15.9 0.020 0.51 23.0 584 5 127
2-1/2
64 50/box 5.2 2.3
SM1700
O16S99
SS
5/8 15.9 0.020 0.51 31.0 787 8 203
4 102
50/box 9.5 4.3
T30069
O20S99
SS
5/8 15.9 0.020 0.51 37.0 940 10 254
5 127
25/box 5.8 2.6
O32S99
SS
5/8 15.9 0.020 0.51 56.0 1422 16 406
8 203
25/box 6.6 3.0
**Take the object circumference and add 4" to grip with the tool. (2 X circumference for double wrap.)
Center Punch Clamp Kit CP3999
• For general plant maintenance or emergency field repairs.
• Clamping range from 3/4" to 1" diameter.
• Kit includes: 4 CP3S99 Center Punch Clamps. 8 each -
CP311S and CP6S99 Center Punch Clamps. 6 - CP5S99
Center Punch Clamps. 9 - CP8S99 Center Punch Clamps.
3 each - O316S9, O10S99, BAND-FAST™ Open End with
Center Punch Clips. 1 - S03869 Center Punch Tool.
Polyethylene carrying case.
Center Punch

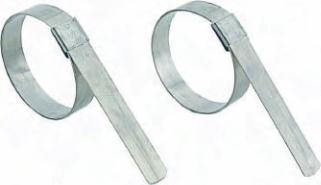

Preformed Clamps
T30069 Center Punch
Tool
S03869 Center Punch
Tool
BAND-FAST
™
Open End with
Center Punch Clip

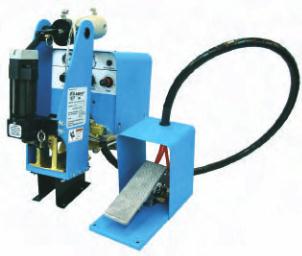

SM1700 Production Tool
