BAND-IT Jr.
®
Smooth ID
Bulk Packaging Options
Inside
Package
Package Application
201 SS*
GCS*
Width
Thickness
Diameter Quantity
Weight
Tools
Part No. Part No. In mm
In mm In mm
Lbs Kg
QS2019
QS3019 3/8 9.6
0.025 0.64 13/16 20 500/box
18.1 8.3
QS2029
QS3029 3/8 9.6
0.025 0.64 1-3/8 34 500/box
25.1 11.4
QS2039
QS3039 1/2 12.7 0.030 0.76 1 25 500/box
32.8 14.9
QS2049
QS3049 1/2 12.7 0.030 0.76 1-1/4 31 500/box
36.2 16.5
C00169**
QS2059
QS3059 5/8 15.9 0.030 0.76 1-1/2 38 500/box
53.9 24.5
J00169**
QS2069
QS3069 5/8 15.9 0.030 0.76 1-3/4 44 500/box
58.3 26.5
J05069**
QS2079
QS3079 5/8 15.9 0.030 0.76 2 50 500/box
62.5 28.4
C00269
QS2089
QS3089 5/8 15.9 0.030 0.76 2-1/4 57 500/box
66.9 30.4
C00369**
QS2099 QS3099 5/8 15.9 0.030 0.76 2-1/2 63 250/box
35.6 16.2
IT5000***
QS2109
QS3109 3/4 19.1 0.030 0.76 2-3/4 69 250/box
43.2 19.6
S35099
QS2119
QS3119 3/4 19.1 0.030 0.76 3 76 250/box
48.5 22.0 S75099
QS2129
QS3129 3/4 19.1 0.030 0.76 3-1/2 88 250/box
54.3 24.7
SET9000
™
QS2139
QS3139 3/4 19.1 0.030 0.76 4 101 125/box 30.7 14.0
QS2149
QS3149 3/4 19.1 0.030 0.76 4-1/2 114 125/box 33.3 15.2
QS2159
QS3159 3/4 19.1 0.030 0.76 5 127 125/box
36.6 16.7
QS2169
QS3169 3/4 19.1 0.030 0.76 6 152 100/box
41.8 19.0
**Junior
®
Adaptors, either J00169 or J05069, must be used with C00169 and C00369.
Universal Clamp
Inside
Package
Package Application
Part No. Material* Width
Thickness
Diameter Quantity
Weight
Tools
In mm In mm In mm
Lbs Kg
JU2428
201 SS 1/4 6.4 0.015 0.38
1
25 100/box
1.2 0.6
JU2528
201 SS 1/4 6.4 0.015 0.38 1-1/2 38
100/box 1.4 0.7
JU2538
201 SS 1/4 6.4 0.015 0.38
2
51 100/box
1.7 0.8 A92079
JU2548
201 SS 1/4 6.4 0.015 0.38 2-1/2 64
100/box 1.9 0.9
A94079
JU2568
201 SS 1/4 6.4 0.015 0.38
3
76 100/box
2.2 1.0 IT1000
JU2578
201 SS 1/4 6.4 0.015 0.38 3-1/2 89
100/box 2.4 1.1
IT3000
JU2588
201 SS 1/4 6.4 0.015 0.38
4 102
100/box
2.6 1.2
JU2598
201 SS 1/4 6.4 0.015 0.38 4-1/2 114
100/box
2.7 1.3
*** For 3/8” band only.
• The Universal Clamp is not recommended for industrial hose clamping applications.
• This is a single wrap, preformed, smooth ID clamp that can be fastened with either a
Tie-Lok
®
or Ultra-Lok
®
termination.
• Can be installed with hand tool or the pneumatic powered production tools.
• Available in bulk packaging.

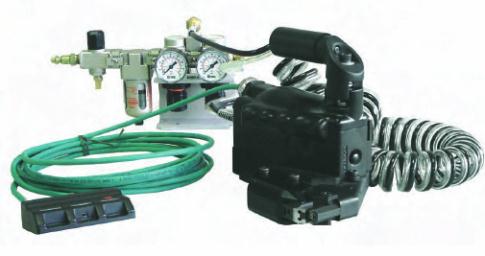

IT Series Tool

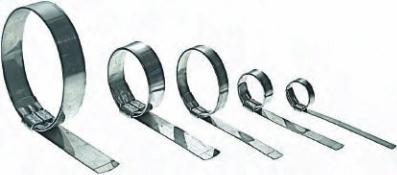

Universal Preformed
Clamp
*BAND-IT reserves the right to substitute material with equal or better corrosion resistance and/or mechanical specifications.
34
303-320-4555
BAND-IT Jr.
®
Smooth ID
Preformed Clamps
