BAND-IT
®
Tie
200/300 Stainless Steel BAND-IT
®
Tie Nylon 11 coated
Maximum
Minimum
Thickness
Diameter Loop Tensile Package Package Application
Part No. Material* Width
Length
Coated Single Wrap Strength Quantity Weight
Tools
Coated
In mm In mm
In mm
In mm
Lbs Kg
AA1118 200/300SS 1/4 6.4 6.0 152 0.026 0.66
1.5
38
75/300**
100/bag
1.4 0.6
AA1128 200/300SS 1/4 6.4 9.0 229 0.026 0.66
2.5
63
75/300**
100/bag
1.8 0.8
AA1138 200/300SS 1/4 6.4 12.0 305
0.026 0.66
3.4
86
75/300**
100/bag
2.1 1.0
AA1148 200/300SS 1/4 6.4 18.0 457
0.026 0.66
5.4 137
75/300**
100/bag
3.0 1.4
AA1158 200/300SS 1/4 6.4 24.0 610
0.026 0.66
7.3 185
75/300**
100/bag
3.7 1.7
AA3118 200/300SS 3/8 9.6 6.0 152 0.026 0.66
1.5
38 100/500**
100/bag
1.8 0.8
AA3128 200/300SS 3/8 9.6 9.0 229 0.026 0.66
2.5
63 100/500**
100/bag
2.5 1.1
AE2018
AA3138 200/300SS 3/8 9.6 12.0 305
0.026 0.66
3.4
86 100/500**
100/bag
3.1 1.4
AE2009
AA3148 200/300SS 3/8 9.6 18.0 457
0.026 0.66
5.4 137
100/500**
100/bag
4.4 2.2
C07569
AA3158 200/300SS 3/8 9.6 24.0 610
0.026 0.66
7.3 185
100/500**
100/bag
6.6 3.0 or by hand
AA3168 200/300SS 3/8 9.6 30.0 762
0.026 0.66
9.1 231
100/500**
100/bag
7.0 3.2
AA3178 200/300SS 3/8 9.6 36.0 914
0.026 0.66 11.0 280
100/500**
100/bag
8.3 3.8
AA8638 200/300SS 5/8 15.9
12.0 305 0.044 1.1
3.4
86 200/800**
100/bag
5.6 2.5
AA8648 200/300SS 5/8 15.9
18.0 457 0.044 1.1
5.4 137
200/800**
100/bag
7.6 3.5
AA8658 200/300SS 5/8 15.9
24.0 610 0.044 1.1
7.3 185
200/800**
100/bag
9.7 4.4
AA8668 200/300SS 5/8 15.9
30.0 762 0.044 1.1
9.1 231
200/800**
100/bag
11.9 5.4
AA8678 200/300SS 5/8 15.9
36.0 914 0.044 1.1
11.0 280
200/800**
100/bag
13.9 6.4
Material thickness includes Nylon 11 coating - Base material thicknesses uncoated: 1/4" is 0.015"; 3/8" is 0.015"; 5/8" is 0.020
PART NUMBER CHANGE – AA Series (Nylon 11 BAND-IT Ties) formerly AE part number series.
316 Stainless Steel BAND-IT
®
Tie PPA571 coated
NEW ITEM
Maximum
Minimum
Thickness
Diameter Loop Tensile Package Package Application
Part No. Material* Width
Length
Coated Single Wrap Strength Quantity Weight
Tools
Coated
In mm In mm
In mm
In mm
Lbs Kg
AE1118
316SS
1/4 6.4
6.0 152
0.045 1.1
1.5
38
75/300**
100/bag
1.4 0.6
AE1128
316SS
1/4 6.4
9.0 229
0.045 1.1
2.5
63
75/300**
100/bag
1.8 0.8
AE1138
316SS
1/4 6.4
12.0 305 0.045 1.1 3.4
86
75/300**
100/bag
2.1 1.0
AE1148
316SS
1/4 6.4
18.0 457 0.045 1.1 5.4 137
75/300**
100/bag
3.0 1.4
AE1158
316SS
1/4 6.4
24.0 610 0.045 1.1 7.3 185
75/300**
100/bag
3.7 1.7
AE2018
AE3118
316SS
3/8 9.6
6.0 152
0.045 1.1
1.5
38 100/500**
100/bag
1.8 0.8
AE2009
AE3128
316SS
3/8 9.6
9.0 229
0.045 1.1
2.5
63 100/500**
100/bag
2.5 1.1
C07569
AE3138
316SS
3/8 9.6
12.0 305 0.045 1.1 3.4
86 100/500**
100/bag
3.1 1.4
or by hand
AE3148
316SS
3/8 9.6
18.0 457 0.045 1.1 5.4 137
100/500**
100/bag
4.4 2.2
AE3158
316SS
3/8 9.6
24.0 610 0.045 1.1 7.3 185
100/500**
100/bag
6.6 3.0
AE3168
316SS
3/8 9.6
30.0 762 0.045 1.1 9.1 231
100/500**
100/bag
7.0 3.2
AE3178
316SS
3/8 9.6
36.0 914 0.045 1.1 11.0 280
100/500**
100/bag
8.3 3.8
**Single/Double Wrapped
Material thickness includes PPA coating - Base material thicknesses uncoated: 1/4" is 0.015"; 3/8" is 0.015"; 5/8" is 0.020
Low smoke, non-toxic, zero halogen, PPA coated with superior corrosion resistance.
Band-Lok
®
Tie
Self-Lok
®
Tie
Maximum
Minimum
Diameter Loop Tensile Package Package Application
Part No. Material*
Width
Length
Thickness Single Wrap
Strength
Quantity Weight
Tools
In mm In mm In mm
In
mm
Lbs Kg
K01199 304 SS 3/16 4.8
5.4 137
0.010 0.25
1.0
25
150
100/bag
0.4 0.2
K01299 304 SS 3/16 4.8
8.4 213
0.010 0.25
2.0
51
150
100/bag
0.5 0.2
K01399 304 SS 3/16 4.8
10.9 276
0.010 0.25
2.7 69
150
100/bag
0.7 0.3
K01499 304 SS 3/16 4.8
14.9 378
0.010 0.25
4.0 102
150
100/bag
0.9 0.5
K01599 304 SS 3/16 4.8
20.9 530
0.010 0.25
6.0 153
150
100/bag
1.2 0.6
K01699 304 SS 3/16 4.8
27.4 695
0.010 0.25
8.0 203
150
50/bag
0.8 0.4
K01799 304 SS 3/16 4.8
33.4 848
0.010 0.25 10.0 254
150
50/bag
1.0 0.5
K01899 304 SS 3/16 4.8
42.4 1076
0.010 0.25 12.0 305
150
50/bag
1.2 0.6
K01999
304 SS 3/16 4.8
47.4 1203
0.010 0.25 14.0 356
150
50/bag
1.3 0.6
K04199 316 SS
3/16 4.8
5.4 137
0.010 0.25
1.0
25
150
100/bag
0.4 0.2
K04299 316 SS
3/16 4.8
8.4 213
0.010 0.25
2.0
51
150
100/bag
0.5 0.3
K04399 316 SS
3/16 4.8
10.9 276
0.010 0.25
2.7
69
150
100/bag
0.7 0.4
K04499 316 SS
3/16 4.8
14.9 378
0.010 0.25
4.0 102
150
100/bag
0.9 0.5
K04599 316 SS
3/16 4.8
20.9 530
0.010 0.25
6.0 152
150
100/bag
1.2 0.6
K04699 316 SS
3/16 4.8
27.4 695
0.010 0.25
8.0 203
150
50/bag
0.8 0.4
K04799 316 SS
3/16 4.8
33.4 848
0.010 0.25 10.0 254
150
50/bag
1.0 0.5
K04899 316 SS
3/16 4.8
42.4 1076
0.010 0.25 12.0 305
150
50/bag
1.2 0.6
K04999 316 SS
3/16 4.8
47.4 1203
0.010 0.25 14.0 356
150
50/bag
1.3 0.6
K50289
or by hand
K50289 Ball-Lok
Adjustable tension,
forms lock, cuts off tail.
AE2018 Tensioning Hook
Band-Lok
®
Tie
Maximum Minimum
Diameter
Loop Tensile Package Package Application
Part No. Material* Width
Length
Thickness
Single Wrap Strength (Lbs) Quantity Weight
Tools
In mm In mm
In mm In mm
Lbs Kg
BL2119 201 SS 5/16 7.9 10.0 254 0.015 0.38
2.0 51
250
100/bag 1.4 0.7
BL2129 201 SS 5/16 7.9 16.0 406 0.015 0.38
3.5 89
250
100/bag 2.3 1.1
BL2139 201 SS 5/16 7.9 19.0 482 0.015 0.38
5.0 127
250
100/bag 3.1 1.5
A95079
BL2149 201 SS 5/16 7.9 27.0 686 0.015 0.38
7.0 178
250
100/bag 3.9 1.8
BL2159 201 SS 5/16 7.9 34.0 864 0.015 0.38
9.0 229
250
100/bag 4.7 2.2
k
®
Tie
l - k
®
Tie
A95079 Band-Lok
®
Tool
Adjustable tension, forms
lock, cuts off tail.
*BAND-IT reserves the right to substitute material with equal or better
corrosion resistance and/or mechanical specifications.
See page 3.
www.BAND-IT-IDEX.com
25
UL listed
Self-Lok
®
Tie
UL listed, DNV Approved, CE Marked, Coast Guard Approved (5/8" widths)

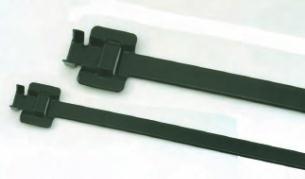

Introducing
extreme corrosion
resistant BAND-IT
®
Ties
PPA571 coating

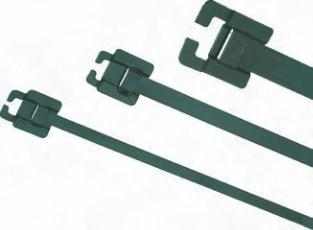

BAND-IT
®
Ties
Nylon 11 coated
