Page 11 - L table

BAND-FAST™
Maximum Diameter Package
Width Thickness Length Single Wrap Double Wrap Package Weight Application
Part No. Material* In mm In mm In cm In mm In mm Quantity Lbs Kg Tools
L20399 201 SS 1/4 6.4 0.020 0.51 10 25 2 50 not suggested 100/box 2.2 0.9
L20499 201 SS 1/4 6.4 0.020 0.51 16 40 3-1/2 88 1-1/2 38 100/box 3.1 1.4
L20799 201 SS 1/4 6.4 0.020 0.51 19 48 5 127 2-1/2 63 100/box 3.5 1.6
L20899 201 SS 1/4 6.4 0.020 0.51 26 68 7 177 3-1/2 88 100/box 4.6 2.1
L21099 201 SS 1/4 6.4 0.020 0.51 34 86 9 228 4-1/2 114 100/box 5.6 2.6
L22199 201 SS 3/8 9.6 0.025 0.64 16 40 3-1/2 88 1-1/2 38 100/box 6.2 2.8
L22999 201 SS 3/8 9.6 0.025 0.64 44 112 12 305 6 152 25/box 3.6 1.6
L24299 201 SS 1/2 12.7 0.030 0.76 18 45 4 102 2 50 100/box 10.5 4.8
L24699 201 SS 1/2 12.7 0.030 0.76 31 78 8 203 4 101 25/box 4.7 2.1
L26399 201 SS 5/8 15.9 0.030 0.76 21 53 5 127 2-1/2 63 100/box 15.1 6.8
L27199 201 SS 5/8 15.9 0.030 0.76 56 142 16 406 8 203 25/box 9.0 4.1
L27399 201 SS 5/8 15.9 0.030 0.76 69 508 20 508 10 175 25/box 10.7 4.8
L28499 201 SS 3/4 19.1 0.030 0.76 24 60 6 152 3 76 50/box 10.9 4.9
L28899 201 SS 3/4 19.1 0.030 0.76 37 93 10 254 5 127 25/box 7.6 3.5
L29099 201 SS 3/4 19.1 0.030 0.76 50 127 14 355 7 177 25/box 9.7 4.4
L29299 201 SS 3/4 19.1 0.030 0.76 62 157 18 457 9 228 25/box 11.6 5.3
BAND-FAST™
Maximum Diameter
Width Thickness Length Single Wrap Double Wrap Package Application
Part No. Material* In mm In mm In cm In mm In mm Quantity Tools
BFES-A0830-020 201 SS 1/2 12.7 0.030 0.76 20 51 4 102 2 51 25/box
BFES-A0830-024 201 SS 1/2 12.7 0.030 0.76 24 61 5 127 2.5 64 25/box
BFES-A0830-027 201 SS 1/2 12.7 0.030 0.76 27 69 6 152 3 76 25/box
BFES-A0830-034 201 SS 1/2 12.7 0.030 0.76 34 86 8 203 4 102 25/box
BFES-A0830-041 201 SS 1/2 12.7 0.030 0.76 41 104 10 254 5 127 25/box
BFES-A0830-048 201 SS 1/2 12.7 0.030 0.76 48 122 12 305 6 152 25/box
BFES-A0830-055 201 SS 1/2 12.7 0.030 0.76 55 140 14 356 7 178 25/box
BFES-A0830-069 201 SS 1/2 12.7 0.030 0.76 69 175 18 457 9 229 25/box
BFES-A0830-076 201 SS 1/2 12.7 0.030 0.76 76 193 20 508 10 254 15/box
BFES-A0830-090 201 SS 1/2 12.7 0.030 0.76 90 229 24 610 12 305 15/box
BFES-A1230-020 201 SS 3/4 19.1 0.030 0.76 20 51 4 102 2 51 25/box
BFES-A1230-024 201 SS 3/4 19.1 0.030 0.76 24 61 5 127 2.5 64 25/box
BFES-A1230-027 201 SS 3/4 19.1 0.030 0.76 27 69 6 152 3 76 25/box
BFES-A1230-034 201 SS 3/4 19.1 0.030 0.76 34 86 8 203 4 102 25/box
BFES-A1230-041 201 SS 3/4 19.1 0.030 0.76 41 104 10 254 5 127 25/box
BFES-A1230-048 201 SS 3/4 19.1 0.030 0.76 48 122 12 305 6 152 25/box
BFES-A1230-055 201 SS 3/4 19.1 0.030 0.76 55 140 14 356 7 178 25/box
BFES-A1230-069 201 SS 3/4 19.1 0.030 0.76 69 175 18 457 9 229 25/box
BFES-A1230-076 201 SS 3/4 19.1 0.030 0.76 76 193 20 508 10 254 15/box
BFES-A1230-090 201 SS 3/4 19.1 0.030 0.76 90 229 24 610 12 305 15/box
Finished
Finished
= For 1/4” & 3/8” widths
C00169
C00369
C07569
C40099
C00169
C00369
C07569
J02069=
C40099
BAND-FAST ™
BAND-FAST™ is ready to use band, pre-cut and pre-assembled with a clip, buckle
or seal. Pre-assembled product gives you an edge over your competition as it saves
up to 30% time and labor costs for your large projects. Wherever you traditionally use
Band & Buckle, or have a need for innovative products, BAND-FAST™ can do the job
faster and with less scrap material! BAND-FAST™ is available in many materials including:
Monel®, Inconel®, AL6XN®, Titanium, AL2003™, 316SS and others upon request.
Determining the correct length for BAND-FAST™ products
When determining the correct product length, BAND-FAST™ is measured from end
to end.

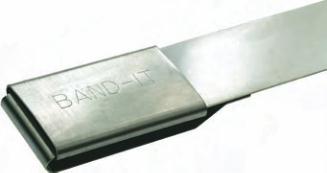

Precut and Assembled with Clip
Precut and Assembled with Ear-Lokt Buckle
BAND-FAST™
is now available
in standard
pre-determined
lengths as well as
custom lengths
and materials.
Call for special
quote.
www.BAND-IT-IDEX.com 11 See page 3.
*BAND-IT reserves the right to substitute material with equal or better corrosion resistance and/or mechanical specifications.
The J02069 can be u ed with 3/8" maximum width product.
