Page 10 - L table

Ultra-Lok® Band
Maximum Clamp Diameter Package Package
Band Width Single Wrap Double Wrap Band Length Quantity Weight
Part No. Material* Inches mm In mm In mm In mm Lbs Kg
UL1018** 201 SS 1/2 12.7 3 76 not suggested 18 457 50/box 4.1 1.9
UL1024** 201 SS 1/2 12.7 5 127 2.5 64 24 610 50/box 5.3 2.4
UL1028** 201 SS 1/2 12.7 6 152 3.0 76 28 711 50/box 6.4 2.9
UL1032** 201 SS 1/2 12.7 7 178 3.5 89 32 813 50/box 7.2 3.3
UL1036** 201 SS 1/2 12.7 8 203 4.0 102 36 914 50/box 8.0 3.6
UL1046** 201 SS 1/2 12.7 11 279 5.5 140 46 1168 25/box 5.9 2.7
UL1056** 201 SS 1/2 12.7 14 356 7.0 178 56 1422 25/box 7.1 3.2
UL1070** 201 SS 1/2 12.7 18 457 9.0 229 70 1778 25/box 8.5 3.9
UL1086** 201 SS 1/2 12.7 22 559 11.0 280 86 2184 25/box 10.2 4.6
UL1096** 201 SS 1/2 12.7 25 635 12.5 318 96 2438 25/box 11.2 5.1
UL1106** 201 SS 1/2 12.7 28 711 14.0 356 106 2692 25/box 12.3 5.6
UL1116** 201 SS 1/2 12.7 31 787 15.5 394 116 2946 25/box 13.3 6.0
UL2020 201 SS 3/4 19.1 4 102 not suggested 20 508 30/tote 4.3 2.0
UL2024 201 SS 3/4 19.1 5 140 not suggested 24 610 25/tote 4.1 1.9
UL2028 201 SS 3/4 19.1 6 152 not suggested 28 711 21/tote 4.3 2.0
UL2032 201 SS 3/4 19.1 7 178 3.5 89 32 813 19/tote 4.3 2.0
UL2036 201 SS 3/4 19.1 8 252 4.0 102 36 914 33/tote 8.2 3.7
UL2040 201 SS 3/4 19.1 10 254 4.5 127 40 1016 30/tote 7.75 3.5
UL2044 201 SS 3/4 19.1 11 267 5.5 140 44 1118 27/tote 8.2 3.7
UL2048 201 SS 3/4 19.1 12 305 6.0 153 48 1219 25/tote 8.2 3.7
UL2052 201 SS 3/4 19.1 13 330 6.5 165 52 1321 23/tote 8.2 3.7
UL2060 201 SS 3/4 19.1 15 381 7.5 191 60 1524 20/tote 8.2 3.7
UL2068 201 SS 3/4 19.1 17 445 8.5 216 68 1727 17/tote 8.2 3.7
UL2076 201 SS 3/4 19.1 20 508 10.0 254 76 1930 15/tote 8.2 3.7
UL2084 201 SS 3/4 19.1 22 559 11.0 280 84 2134 14/tote 8.2 3.7
UL2092 201 SS 3/4 19.1 24 622 12.0 305 92 2337 13/tote 8.2 3.7
UL2120 201SS 3/4 19.1 32 826 16.0 407 120 3048 10/tote 8.2 3.7
UL2150 201 SS 3/4 19.1 41 1029 20.5 508 150 3810 8/tote 8.2 3.7
UL2175 201 SS 3/4 19.1 48 1232 24.0 610 175 4445 7/tote 8.2 3.7
Package
Package Weight
Part No. Material* Description Quantity Lbs. Kg
UB2549 201 SS Ultra-Lok® Buckles, 1/2" 100/box 3.7 1.7
UB2569 201 SS Ultra-Lok® Buckles, 3/4" 100/box 3.7 1.7
Ultra-Lok ® Buckle
Package
Package Weight
Part No. Description Quantity Lbs. Kg
UL4000 Ultra-Lok® 18-volt Rechargeable,
Portable Tool each 17.5 7.9
UL9010 Ultra-Lok® 110-volt AC, Corded
Electric Tool each 15 6.8
ULK249 Kit; Used to upgrade the tension body
of the UL9000 and the UL9010 each 0.4 0.2
M09387 1/2" Shear plate for UL4000, upgraded
UL9000 and UL9010 to convert from
3/4" Ultra-Lok® to 1/2" Ultra-Lok®
Clamp Systems each 0.1 0.1
Ultra-Lok ® Tools
The Ultimate Clamping System
Ultra-Lok® Tote
1/2" Ultra-Lok®
Band and Buckles
Ultra-Lok® UL9010

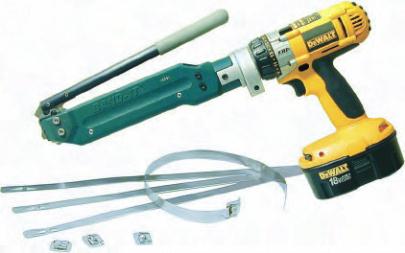

Ultra-Lok® UL4000
** 1/2" bands will require M09387 for UL4000 and UL9010 tool. Contact Factory.
3/4" width band lengths 36" or longer in 100' totes; 34" or less in 50' totes.
Ultra-Lok ® is also available in preformed clamps, see page 32.
SEE PAGE 32 FOR MORE DETAILS
ON THE ULTRA-LOK ® TOOLS.
10 303-320-4555
Ultra-Lok ® Band and
Buckle formed to a
completed lock
*BAND-IT reserves the right to substitute material with equal or better
corrosion resistance and/or mechanical specifications.
