CODE SYSTEM
Type Diameter
Suffix
Carcass
Prefix
Model
Length
DC STD M 3070F - HA 500mm ×10.7m
STD or
No Mark Standard Type
H H Type
S-300 Super 300 Type
S300-15 Super 300-15 Type
Symbol Value
No
Mark Single Carcass
DC Double Carcass(Oil Detector Warning)
TWS Double Carcass(Twist Warning)
150 mm
Symbol Value
200 mm
300 mm
400 mm
500 mm
600 mm
250 mm
6"
8"
12"
16"
20"
24"
10"
No
Mark
HA
Symbol Value
No modification to
original design
Special lining for high
aromatic fluid of up to
60 % aromatic
hydrocarbon content.
Symbol Value
No Mark No modification
to original design
U Polyurethanecovered hose
M
Some modification
to original design
such as,
Extra thick cover
Extra buoyancy
Symbol Value
Other
Alphabet
Some modification
to customer's own
specification
Symbol Value
2070F
3070F
4070F
5070F
6070F
2570F
2470F
2090S
3090S
6090S
2590S
2091U
3091U
8570F
8470F
8590S
8591U
8491U
9.1 m
Symbol Value
10.7 m
12.2 m
30 ft
35 ft
40 ft

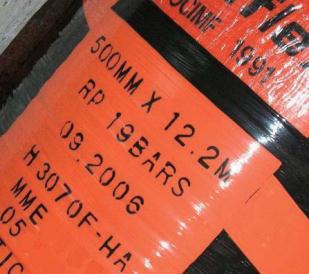

Sample ( Label on the actual hose )
Single carcass, H-type, Full Floating
Line hose, 20”x40’
SEAFLEX NOMENCLATURE EXAMPLE
Full Floating Line Hose
Full Floating Tail Hose
Full Floating Tanker Rail Hose
Full Length Reinforced Floating Hose
Taper Reinforced Floating Hose
Submarine Hose with Reinforced
One End
Submarine Line Hose
Submarine Tanker Rail Hose
Submarine Hose with Reinforced One
End & Location Collars
Submarine Line Hose & Location Collars
Full Length Reinforced Submarine Hose
Full Length Reinforced Floating Hose
for FPSO
Taper Reinforced Floating Hose for FPSO
Full Length Reinforced Hose for FPSO
Full Length Reinforced Hose & Location
Collars for FPSO
Taper Reinforced Hose & Location
Collars for FPSO
Full Floating Line Hose with Built-In
Reducer
Part Floating Hose with Reinforced
One End
