Page 23 - 18640 GC04 Cat Rev

23
®
Wing pulleys, in general, are designed to
be used in the dirtiest and most abrasive
part of the conveyor system. Their self
cleaning action is required to reduce
material build up between the
pulley and the belt which can
cause belt misalignment and
belt wear.When these condi-
tions become so abusive that
they actually reduce the life of
a conventional wing pulley, an
XT-remeTM solution to the prob-
lem is required.
VAN GORP® XT-remeTM wings have
heavier contact bars, heavier wings and have reinforc-
ing rings on all sizes. It also features the XT® system
which is the premier hub and bushing system for con-
veyor pulleys.
The XT-remeTM wing is available in diameters ranging
from 12 to 36 and face widths 12 to 76. It is also avail-
able with new VAN GORP® ◆DB◆ replaceable wing
lagging for even more wing pulley life.
Features and Benefits
• Heavier contact bar for added
wear in abrasive applications.
• Heavier wing for a greater load
carrying service factor.
• Reinforcing rings to minimize
the bending of the wing tips.
• XT ® Hub and bushings with
superior torque and thrust rat-
ings.

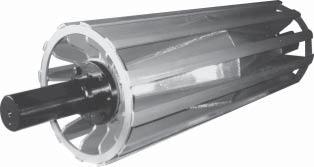

XT-reme™Wing Pulleys
XT-reme™Wing
Pulley Diameter
Crown Face
Face Width
Hub Type and Size
WX 18 C 38 XT35
Part Number Example
American Made
