TPX
3-Ply Nitrile Rubber Hose
Traditionally manufactured extruded hose can vary in thickness, becoming bulky
and heavy. Snap-tite TPX utilizes a unique 3-ply design where the cover and liner
are extruded independently and double vulcanized to guarantee a consistent,
compact hose wall. However, the strength of TPX is in its reinforcement. Snap-tite’s
TPX is made of 100% high tenacity, polyester fibers. Polyester is known for its
strength, but also has the ability when stretched, to return to its original size and
shape. Tightly woven high strength polyester reinforcement means a longer wear
life, greater tensile strength, and superior puncture resistance.
Properties and Construction
• Ribbed nitrile rubber cover lowers drag force and provides long
service life.
• Smooth nitrile rubber liner keeps pressure drop to a minimum.
• Polyester reinforcement, tightly woven, twill weave resists puncture.
• Hose remains flexible to temperatures as low as -5°F (-20°C) and is
resistant to ozone, oxidation, and most chemicals or petroleum products.
• Excellent for tough applications such as construction sites, mines and
industrial firefighting.
• Snap-tite TPX is manufactured within our ISO-9001: 2000 certified quality
assurance system.
How to Order
Nitrile Rubber Liner
Polyester Inner Jacket
Nitrile Rubber
Outer Jacket
TYPE HOSE HOSE COLOR COUPLING THREAD COUPLING
I.D. X LENGTH SIZE TYPE MATERIAL
Part Number Example: TPX40X50Y40S = TPX Hose, 4” ID by 50’ Length, Yellow, 4” Aluminum Storz Coupling
TPX 40X50 Y 40 S
TPX 15 = 1-1/2” 50 = 50’ Y = Yellow 15 = 1-1/2” N = NH Blank=
17 = 1-3/4” 100 = 100’ R = Red 20 = 2” I = IPT Aluminum
20 = 2” K = Black 25 = 2-1/2” S = Storz
25 = 2-1/2” 30 = 3” BR= Brass
30 = 3” 35 = 3-1/2” Rocker Lug
40 = 4” 40 = 4”
50 = 5” 50 = 5” BP= Brass
60 = 6” 60 = 6” Pin Lug
80 = 8”
8” only available in

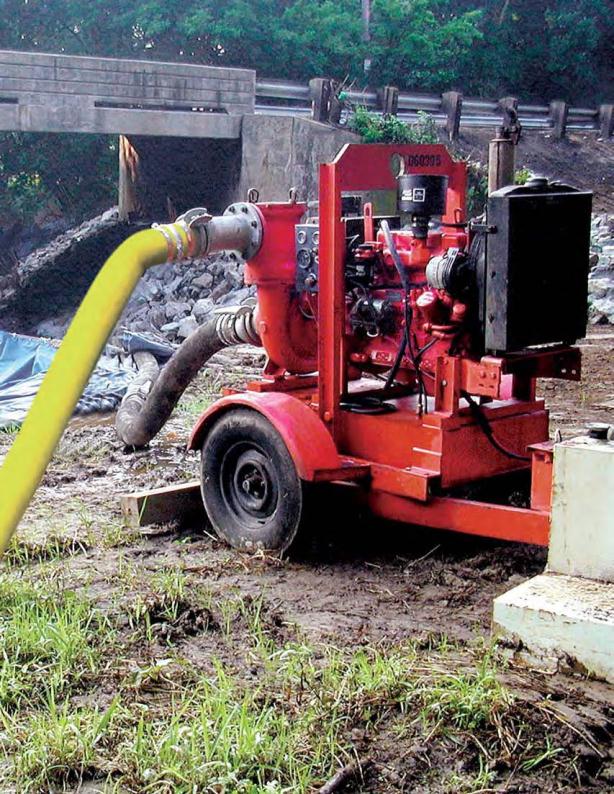

K=Black Pump shown is a Godwin Dri-Prime® Pump
Godwin and Dri-Pump are registered trademarks of the
Godwin Pumps of America Corporation
- Type TPX
I -10
SIZE SERVICE PROOF BURST WEIGHT FLAT HOSE BED BOWL
TEST TEST (For 50’ Coupled) WIDTH Volume (100’) SIZE
PSI (kPa) PSI (kPa) PSI (kPa) LBS (KG) IN FT 3 IN
1-1/2” 300 (2070) 600 (4140) 1000 (6900) 17 (8) 2.80 2.0 1-13/16
1-3/4” 300 (2070) 600 (4140) 1200 (8275) 19 (9) 3.25 2.5 2-1/16
2” 300 (2070) 600 (4140) 1200 (8275) 22 (10) 3.60 2.5 2-5/16
2-1/2” 300 (2070) 600 (4140) 1000 (6900) 30 (13.6) 4.30 3.5 2-13/16
3” 300 (2070) 600 (4140) 900 (6200) 38 (17.2) 5.10 4.5 3-5/16
4” 250 (1725) 500 (3450) 750 (5170) 45 (21) 6.60 5.0 4-5/16
5” 225 (1550) 450 (3100) 675 (4650) 55 (25) 8.20 7.5 5-5/16
6” 150 (1035) 300 (2070) 500 (3450) 70 (32) 9.90 12.5 6-5/16
8” 100 (690) 200 (1380) 400 (2760) 125 (57) 12.75 N/A N/A
Operating Pressure not to Exceed 90% of Service Test Pressure
Hose Colors:
Construction:
3-Ply Nitrile Rubber Cover/Liner
Polyester Reinforcement
Temperature Range:
-5° to 200°F (-20° to 95°C)
Couplings Available:
Aluminum or Brass NH/NST or
IPT Threaded & Aluminum Storz
options
Approvals:
MSHA Approved Product
Available Upon Special Request
